Setting up HIF6 carb on 122 Aluminum Intake 120-130

posted by  malloy1 on  Sun Mar 13 21:02 CST 2011
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sun Oct 12 17:44 CST 2014
[RELATED]

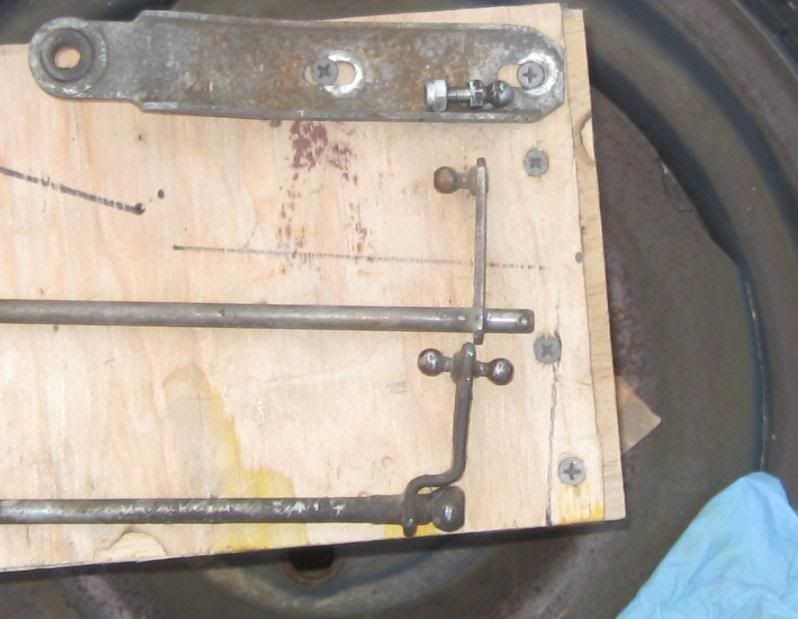

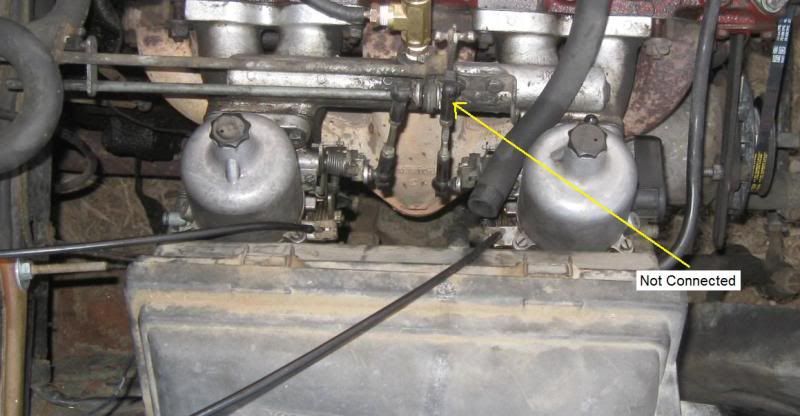

I picked up a set of HIFs for my 122 to replace my very worn out HS6s. I got them running today, but can't figure out how to use the HIF throttle shaft (the double ball one) on the aluminum intake. The HS6 shaft works great, but only has one ball. How do people setup their HIF in their 122? How about the choke cables too!

Photobucket

Photobucket

I figure if I could find a double ball end setup, I could cut off the ball on the HS6 throttle shaft, and drill a hole in the lever where the stock ball end is located to mount a double ball end setup.

Paul
