Belt Tensioner and Alternator pulley V70-XC70 2000

posted by  e21Pilot on  Mon Jan 9 03:51 CST 2012
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sat Sep 27 01:59 CST 2014
[RELATED]

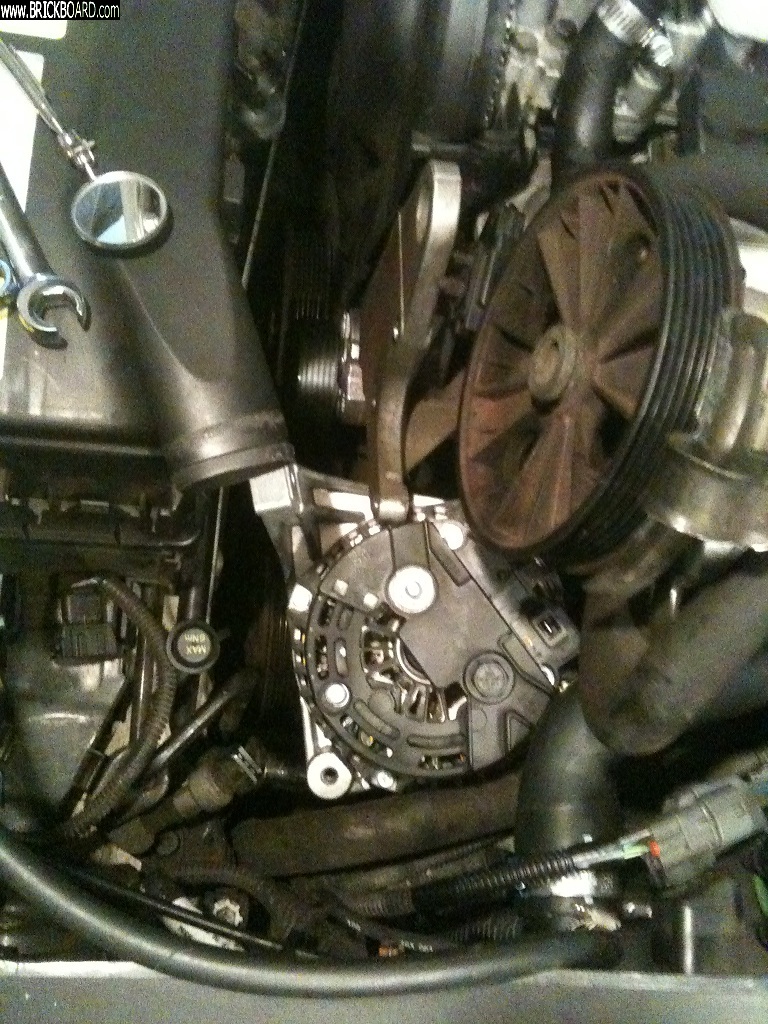

I found the alternator a little tricky to remove/install so I snapped this pic of how I got it in/out of the engine bay. The way it worked for me was to orient the alternator with the backside facing upwards and then rotate it so the alternator mounting flange plane was parallel to the plane of the timing belt. It was still a squeeze but it worked.

Also use a t-60 torx bit to rotate the serpentine tensioner to get the belt on and off.

btw -- engine now runs as smooth as new with the new alternator.

Thanks for the help Klaus







THREADED THREADED EXPANDED FLAT PRINT ALL
MESSAGES IN THIS THREAD

New Belt Tensioner and Alternator pulley [V70-XC70][2000]
posted by  e21Pilot  on Mon Nov 28 02:04 CST 2011 >


<< < > >>
