TRW timing belt marks

posted by  Aye Roll on  Sun Oct 27 14:09 CST 2002
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Tue Oct 14 21:08 CST 2014
[RELATED]

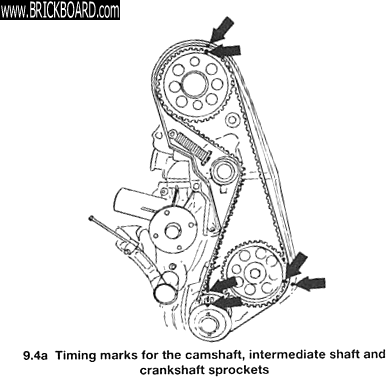

The single marks line up with the cam pulley mark and the aux pulley mark.
The double would line up with the mark on the crank sprocket if you could turn the crank to line it up- when it's installed, the crank mark winds up over to the left of the crank pulley.
Hopefully this picture helps some.
===
Rob Bareiss, New London, CT ::: 86 244DL, 87 244DL, 88 744GLE, 625K Total
