Need Help with Front Coil Spring Information - Tears without Measure 200 1977

uid 40935's pic
posted by  Goatman on  Tue Oct 19 07:49 CST 2010
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sat Jul 26 20:30 CST 2014
[RELATED]

Hi,


I just completely refit my front end with new control arms, struts, bushings, inner and outer tie rods, and wheel bearings.

This vehicle is a 1977 264 GL. I installed a lighter B23F instead of the heavy B27 six cylinder.

After adjusting the strut all the way inboard, the camber is still positive. The front end rides pretty high from the wheels which I actually like, because the suspension travel is enhanced.

The camber is out of spec, however. I see that the 240 Turbo models had different springs then the other models. Also, the six cylinder had alternate parts.

What are the part numbers and the differences between the options? I’d like a stiff spring, but I cannot align the hub correctly without camber plates at this ride height.


Goatman








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Failed Alignment 200 1977

    uid 40935's pic
    posted by  Goatman on  Thu Oct 21 17:18 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Sat Jul 26 20:30 CST 2014
    [RELATED]

    Hello,


    Had the 1977 aligned at the dealership today. The camber was out of spec, just as I expected.

    1.1 degrees positive and 0.9 degrees positive.

    Guess I should have changed the springs first! Boo!


    Goatman








    •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

      I don't want to say...(you know the rest) ;-) 200 1977

      uid 18083's pic
      posted by  lucid on  Fri Oct 22 02:04 CST 2010
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Oct 24 12:31 CST 2014
      [RELATED]

      "Guess I should have changed the springs first! Boo!"

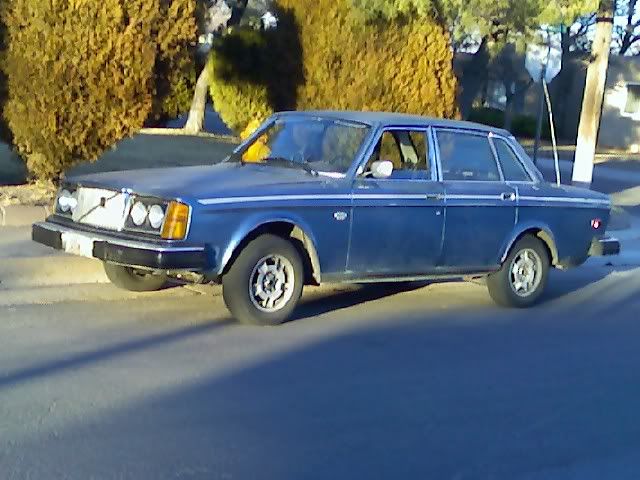

      Somebody suggested that back on Thu Feb 7 17:59 EST 2008, when seeing your car photo (copy below) and said:

      "Another item for your list would be the front springs. Intended to carry the heavier V-6, they are lifting the front end too high, with the lighter B23 installed. The lift is apparent in the picture."




      --
      Bruce Young, '93 940-NA (current), 240s (one V8), 140s, 122s, since '63.








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Need Help with Front Coil Spring Information - Tears without Measure 200 1977

    posted by  Volvo From Heck on  Wed Oct 20 02:34 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Oct 13 20:56 CST 2014
    [RELATED]

    I can't answer your technical question regarding the different springs--while I've taken many measurements of rear springs 140/240--I've never done the same with 240/260 fronts. But I can tell you what worked for me when I rolled my V8 conversion (alumuinum 215 Oldsmobile-lighter than the B21-23- into a '76 265) out of the garage and found my headlights in the trees. As a "temporary" measure we did an old hot rod lowering trick--heating a stretch of the coil to cherry red and bouncing on the fender. We did each side till it looked "right". The drop in the spring is probably over 2". While the car was in the shop getting the V8 I had replaced the strut inserts with new KYB Gas-adjusts so I wasn't keen on taking it all apart right away to install 240 springs. Having the 260/diesel spring rate made for a much firmer ride with the lighter V8 and with doubled up 260 sway bars it had almost no lean driving on the road. In the end the springs never got changed--more than 150K miles later they're still on the car. -- Dave








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Tears aside, how are you measuring camber. And to what specs? (NMI) 200 1977

    uid 18083's pic
    posted by  lucid on  Tue Oct 19 12:21 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 12:31 CST 2014
    [RELATED]








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Tears aside, how are you measuring camber. And to what specs? (NMI) 200 1977

      uid 40935's pic
      posted by  Goatman on  Tue Oct 19 12:36 CST 2010
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Sat Jul 26 20:30 CST 2014
      [RELATED]

      Lucid,


      I stand fifty feet away and look at it. The slant is obvious. I should take a picture... I messed with a level but found it useless because it interfered with the tire.

      Goatman








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    ANSWER Need Help with Front Coil Spring Information - Tears without Measure 200 1977

    posted by  pageda on  Tue Oct 19 12:16 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 13:18 CST 2014
    [RELATED]

    I found this on Turbo Bricks.

    http://volvowholesaleparts.com/partlocator/index.cfm?action=getJointLocator&siteid=213784&chapter=§ionids=19,2512&groupid=20135&subgroupid=60277&make=36&model=240&year=1991&catalogid=1&displayCatalogid=0

    Dan

    This post has been marked as an answer to the original question.



  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Need Help with Front Coil Spring Information - Tears without Measure 200 1977

    posted by  Rhys on  Tue Oct 19 12:03 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Tue Nov 20 10:22 CST 2012
    [RELATED]

    I'm assuming you have rolled the car back and forth about ten feet to allow the tire scrub to work out, after having lowered it to the ground?
    Then a few good bounces and it should be fine - if not it's the springs.








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Need Help with Front Coil Spring Information - Tears without Measure 200 1977

    posted by  Euroman on  Tue Oct 19 08:32 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Apr 1 16:48 CST 2013
    [RELATED]

    Goatman

    I wish I could help but that is the one area in which I am completely uninformed. I am certain one of the heavy-weight brains from BB will come to the rescue, although it sounds like you know enough to do it solo.

    Ken








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Need Help with Front Coil Spring Information - Tears without Measure 200 1977

      uid 40935's pic
      posted by  Goatman on  Tue Oct 19 10:50 CST 2010
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Sat Jul 26 20:30 CST 2014
      [RELATED]

      Euroman,


      I don’t understand part of your comment. What do you mean by, "know enough to do it solo"? I need information on coil springs.


      Goatman







<< < > >>
