Side Mirror Remove Removal 200

posted by  hawkeye on  Mon Feb 21 18:49 CST 2011
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Wed Oct 22 16:44 CST 2014
[RELATED]

Small thing but it might help someone in the future. I pulled the trim and mirrors off the 245 today and was not sure how to remove the side mirror mirrors. I figured it out and decided to post some photos to help someone in the future.

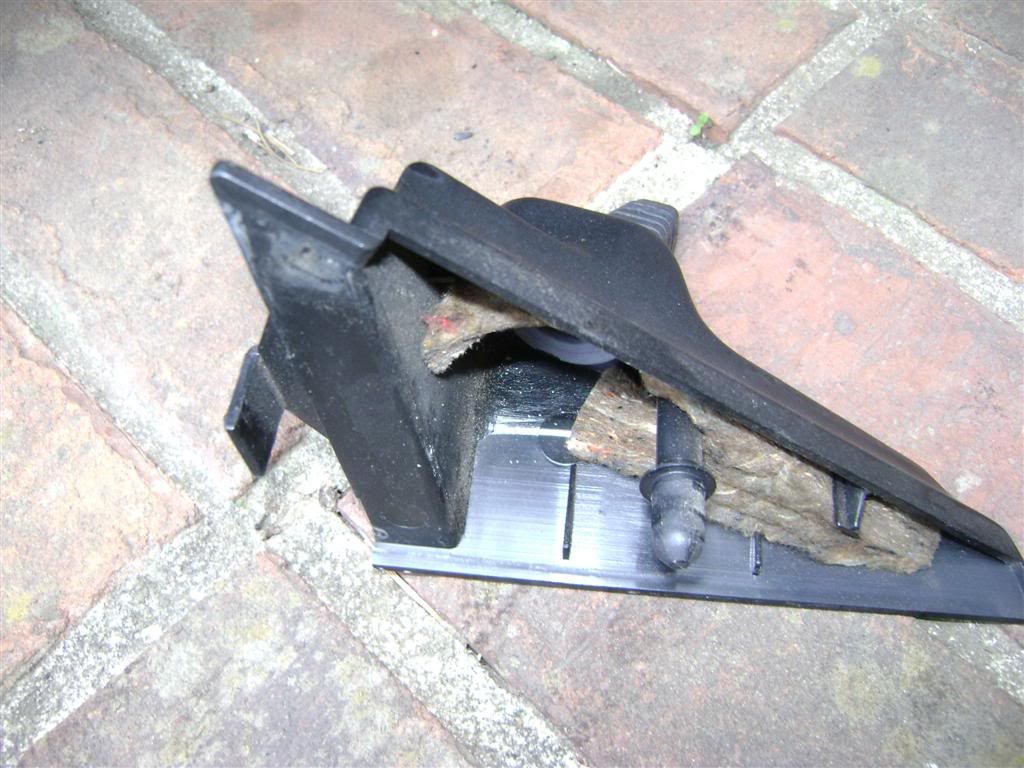

1. Remove the trim piece from the interior of the door. It is held by a plug on the trim piece that fits pretty tightly into a 1/4 hole in the door. I used a large bladed screw driver and worked it back and forth until it "popped" out. The hole in the door is just below the top screw so you will have some idea where to pry.

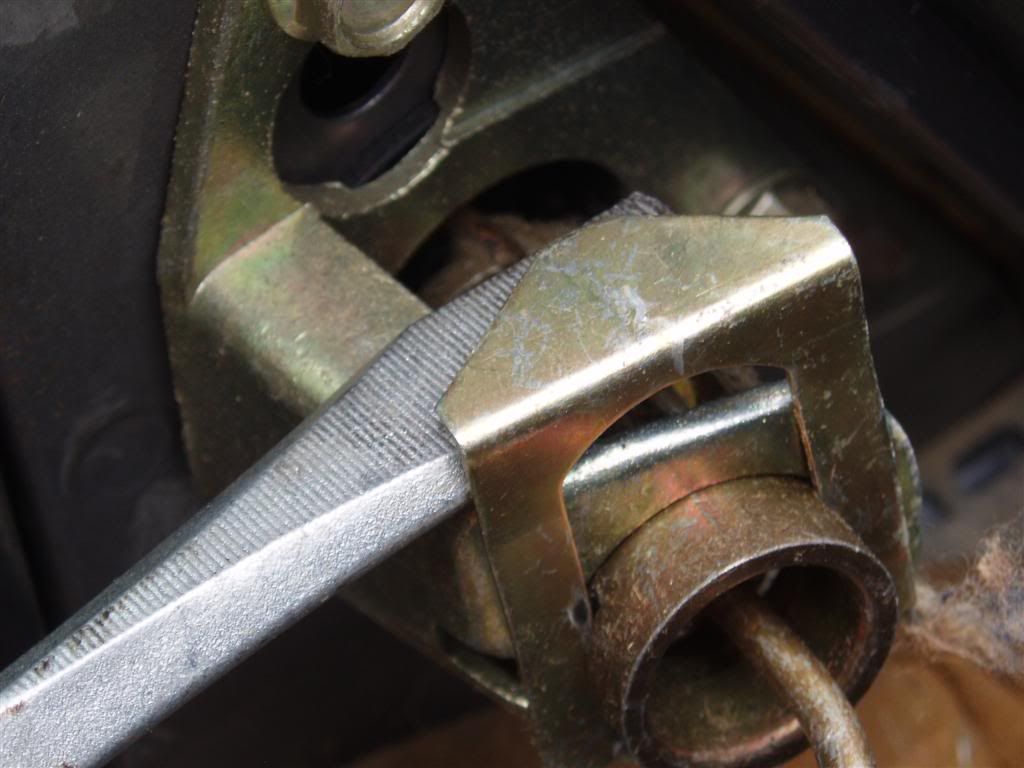

Remove the clip with a screw driver.

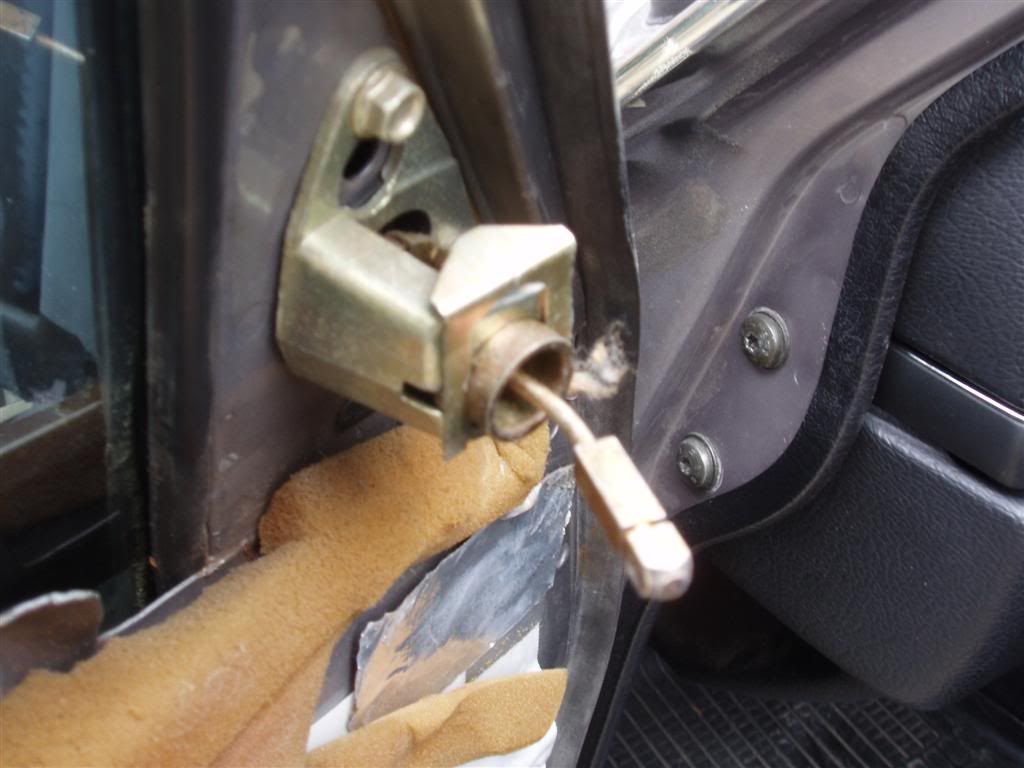

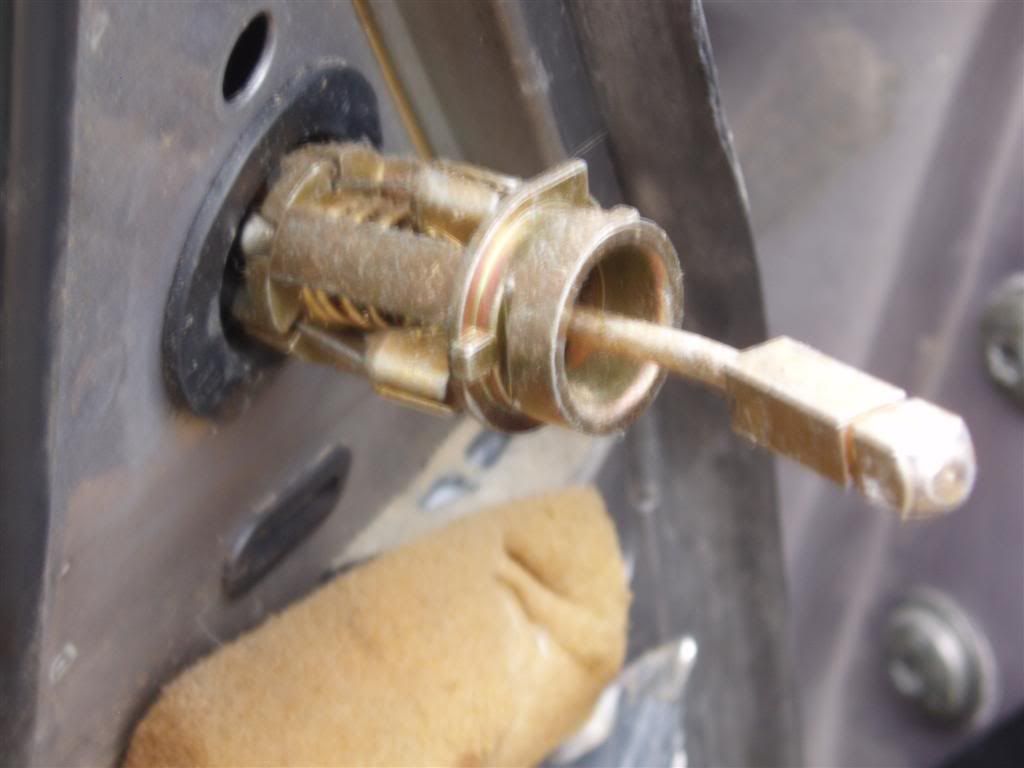

Remove the two screws that mount the mounting plate to the door. Pull the mirror from the outside to pull it from the door.
