SOLVED: What am I missing here? 200 1993

uid 33936's pic
posted by  TheBrickTank on  Mon Dec 18 19:24 CST 2017
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Thu Oct 23 17:54 CST 2014
[RELATED]

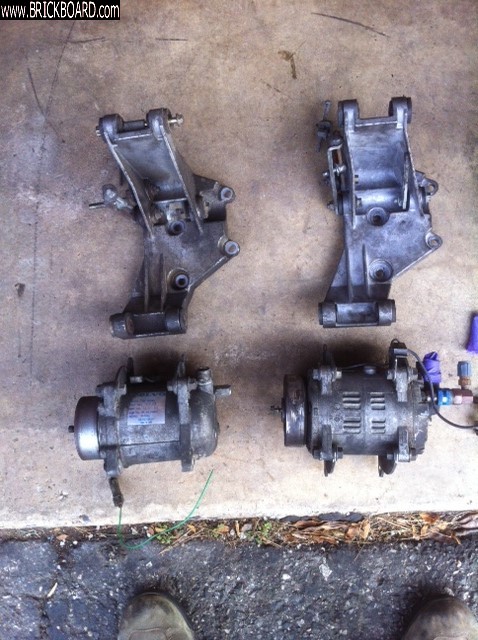

So this morning I removed the offending bracket (R12) from the vehicle (right hand side) and took a picture of it next to the original out of the car bracket (R134a) (left hand side). I also included their respective compressors so you can visualize what I was talking about.





Upon further inspection, there are two distinct parts numbers:

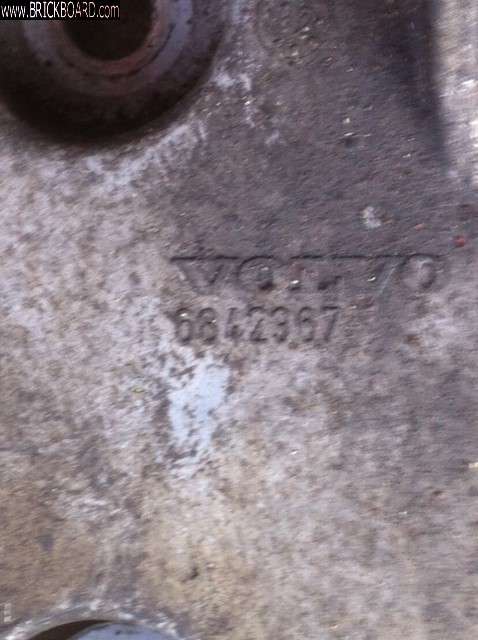

The first in the image below is for an R12 a/c bracket.

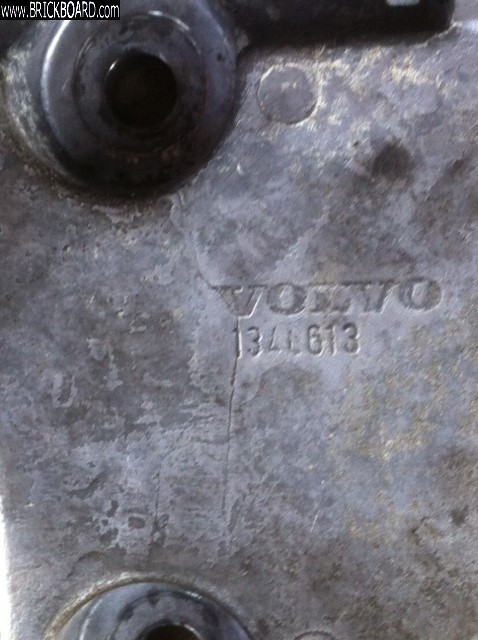

The second image here is for an R134a a/c bracket.





I removed all the new bushings from the wrong bracket and installed them in the original bracket and then put the original bracket back in the car. All the a/c connecting rods now align as they should and their was rejoicing.

Matt
--
1989 - 245, 1990 - 245, 1991 - 245, and 1993 - 245
