544 REAR SEAT BED 444-544

posted by  triumph61 on  Tue Sep 29 13:02 CST 2009
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Wed Jun 15 05:25 CST 2011
[RELATED]

I read in one of my Volvo books that when the 444/544 were being manufactored that there was some kind of rear seat conversion to a sleeping area option that could be ordered from the factory. Has anyone ever heard of this or seen one of these options in a car. I was just wondering what it would look like.
Thanks








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    544 REAR SEAT BED 444-544

    posted by  Feled on  Fri Oct 16 16:59 CST 2009
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Sun Jul 18 19:54 CST 2010
    [RELATED]

    You guys are so lucky to have the 444/544's. As they never came in RHD few have come to Australia, usually by personal import only.

    Someone suggested recently that with all the retro models being produced - Mini, Fiat 500, PT Cruiser - if Volvo was ever game enough to produce a 444/544 lookalike I am sure there would be many takers judging by the way you guys love these cars!

    In the meantime I will just have to live with my 1970 142S.








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    544 REAR SEAT BED 444-544

    posted by  schmidtchen on  Sun Oct 11 17:40 CST 2009
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Dec 10 20:45 CST 2010
    [RELATED]

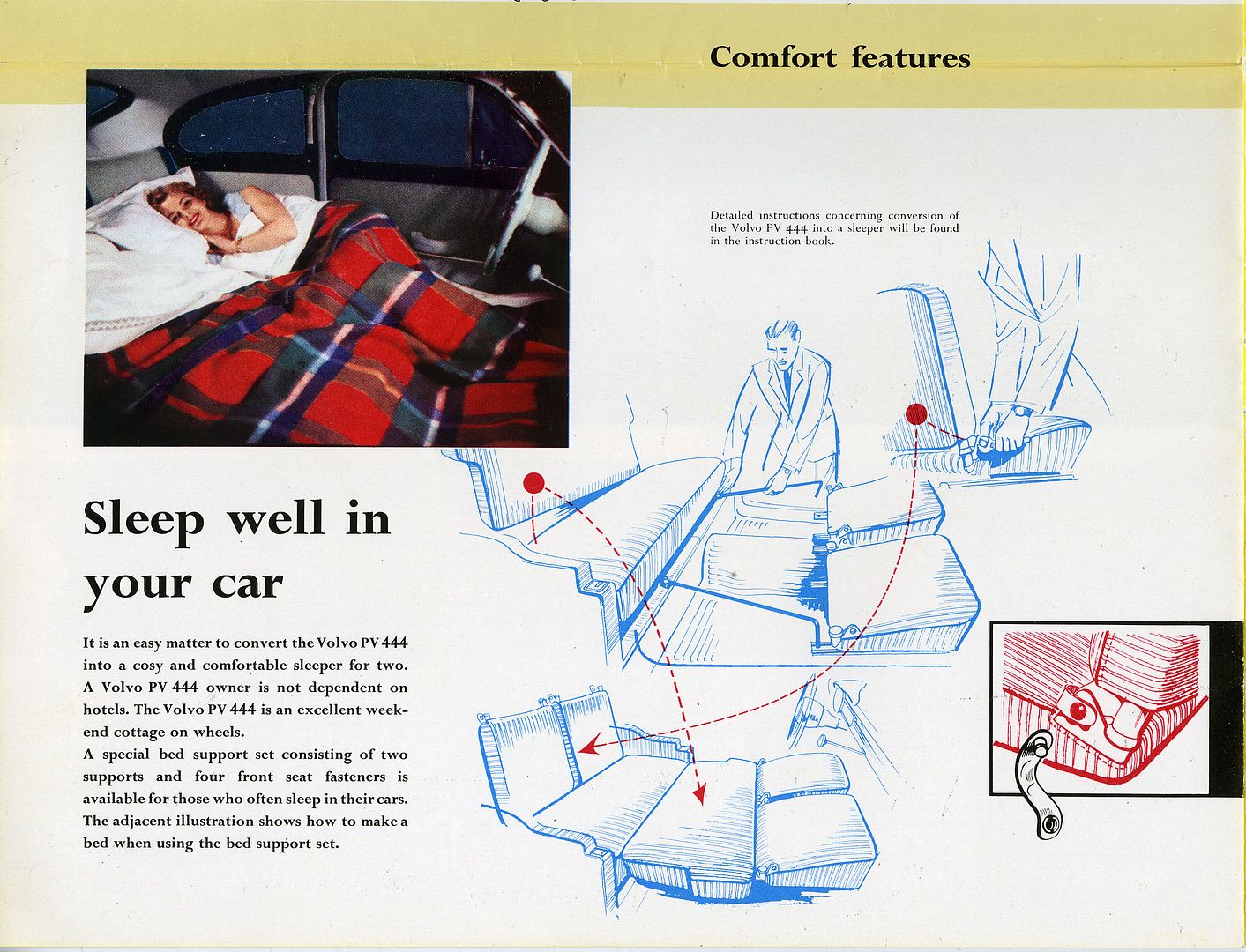

    Here is a picture of a brochure I have showing the bed set up.




    I found a set of NOS seat snaps on Tradera.com

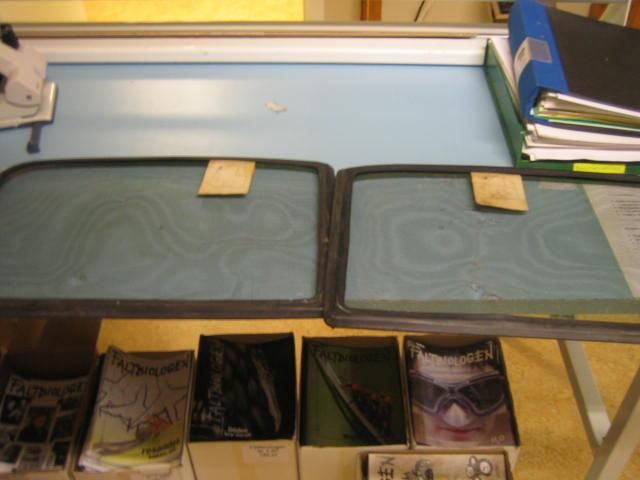

    And here is one more special item I have for the camping enthusiasts... an original set of window bug screens for the 444 or 544s.



    Cheers!
    Chris







  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    544 REAR SEAT BED 444-544

    uid 5771's pic
    posted by  skeet on  Tue Sep 29 13:22 CST 2009
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Mar 25 22:30 CST 2013
    [RELATED]

    The answer is yes. My last 64 that I sold had an original drivers handbook. It did show a picture of the support brackets. It showed that the pivot pins for the front seat backs had a pin with a small leather strap with some type of snap(?) on the end. It appeared that the pin could easily be removed without tools. The rear seat back was laid flat on the supports in front of the rear seat cushion, and the front seat backs were placed vertically in place of the rear seat cushion. There were several other pictures of optional item, like the trans tunnel wire basket, a reverse back-up light, and others.
    Hope this helps.








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      544 REAR SEAT BED 444-544

      posted by  Ola on  Tue Oct 6 20:51 CST 2009
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Sat Jun 7 15:27 CST 2014
      [RELATED]

      Hi, I have this equipment for my 544, and I have also tried to sleep in a previous 544 that I owned while I was a student. It actually works quite fine, even with a girlfriend on board ;-). The hardware needed is the two metal profiles as shown in a previous post plus the special snap on bolts for the back of the front seats. I purchased such a kit a few years ago from CVI automotive in Sweden (excellent webshop), part no 79772 at selling price SEK 481 (approx USD 70) however it seems that stock is depleted. Swedish name is Bäddsats, and maybe there are other sources on the internet.








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        544 REAR SEAT BED 444-544

        posted by  65_Dude on  Wed Oct 7 14:20 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri Apr 4 07:06 CST 2014
        [RELATED]

        Ola,
        Could you post a picture of these special snap on bolts that you have? thanks, Stu








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          544 REAR SEAT BED 444-544

          posted by  Ola on  Thu Oct 15 03:27 CST 2009
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Sat Jun 7 15:27 CST 2014
          [RELATED]

          Hi, Sorry for late reply and again sorry for being unable to do so, as I am about 6.000 kms at least separated from my car for the next few months. However, they are made of some kind of brass with a leather strap fixed to one end, and a pushbutton attacted to the other which snaps on the other when in position. This avoids the use of tools in order to take off front seat backs.








          •   REPLY TO THIS MESSAGE    PRINT   SAVE

            544 REAR SEAT BED 444-544

            posted by  65_Dude on  Thu Oct 15 05:08 CST 2009
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Fri Apr 4 07:06 CST 2014
            [RELATED]

            those sound like the stock attachments (or at least what's been on my PV as long as I can remember). Maybe these came with the kit.








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      BACK UP LIGHT 444-544

      uid 35621's pic
      posted by  Suppo176 on  Wed Sep 30 08:19 CST 2009
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Mon Jan 13 13:39 CST 2014
      [RELATED]

      Skeet! You have hit my hot button. The mythical "Back Up Light"

      Is there/was there a part number for such on a 544? I know that there is a switch on the back of the transmission that is activated by one of the rods that engage when the shift lever is put in reverse, however, I have never seen an actual example of a "stock" light.

      There is an extra hole in my rear bumper, but I believe it is for mounting a red reflector.

      Would be very interested in finding out about this set up - and then putting one into use!

      Suppo176
      1965 PV544







      •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

        BACK UP LIGHT 444-544

        posted by  schmidtchen on  Sun Oct 11 17:50 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri Dec 10 20:45 CST 2010
        [RELATED]

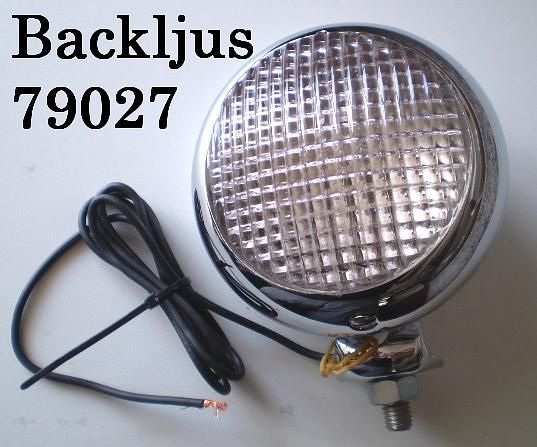

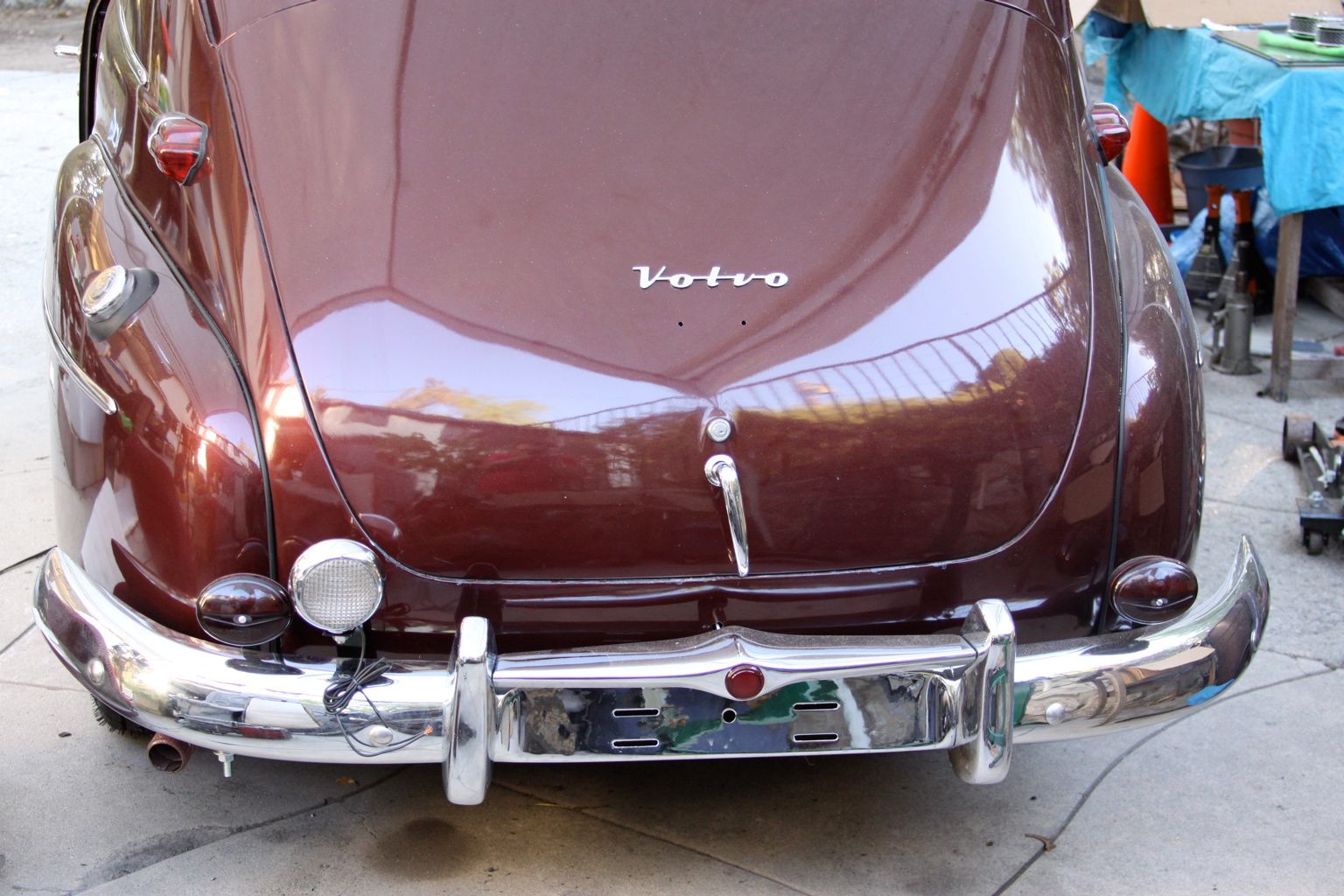

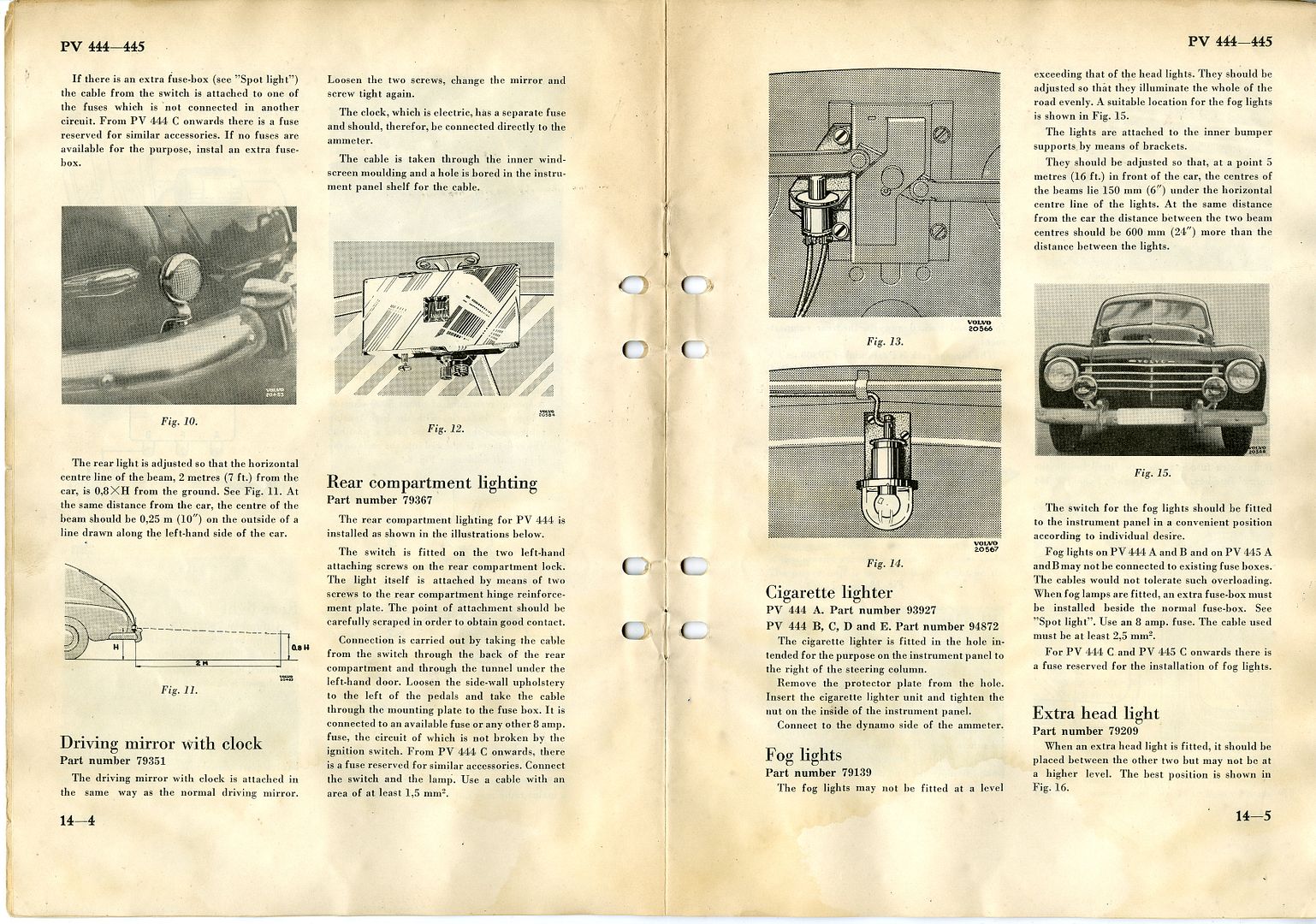

        These come up, both the round one and the rectangular one, on Tradera.com in Sweden. I was even able to get an NOS version of each, one for my 1956 and one for my 62. Here is the round one shown in a 1955 accessories catalog, and mine mounted on my 444. The part numbers are #79027 (round) and #79503 (rectangular)

        Chris







      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        BACK UP LIGHT 444-544

        posted by  volvosteve on  Fri Oct 9 10:06 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri May 23 11:12 CST 2014
        [RELATED]

        There is a reproduction part available with red or clear lens. The red being a rear fog. Check with Christer at www.vp-autoparts.com in Charleston SC. That is where I bought mine.
        steve








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        BACK UP LIGHT 444-544

        posted by  HemanMarvel on  Thu Oct 1 04:16 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Wed Dec 23 14:57 CST 2009
        [RELATED]

        The original setup sold as an accessorie - switch conversion kit + VOLVO backup light - with Volvo logo in the glass..

        http://www.classicvolvoshop.com/backuplight.html








      •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

        BACK UP LIGHT 444-544

        posted by  Pebee on  Wed Sep 30 10:24 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Sat Jun 21 07:30 CST 2014
        [RELATED]

        For pictures of the Backup Light, mounting bracket, and location, all provided by Cam {a.k.a.CVOLVO.COM} - search:
        http:/www.brickboard.com/RWD/index.htm?id=1130161








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          BACK UP LIGHT 444-544

          posted by  volvorelix on  Wed Sep 30 18:48 CST 2009
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Thu Oct 23 21:56 CST 2014
          [RELATED]

          Golly!

          I have that very round back up light on my 444 - came with the car. But I've always thought it was from some other car, because it has "FORD" stamped in the body of the lamp, just behind the ring that retains the lens. There's an identical light on an early 50s Packard that parks near my office, but this one's stamped "PACKARD." I initially thought mine was a dealer installed or aftermarket Intended-for-a-Ford piece, then thought they must be generic aftermarket when I saw the one labeled Packard... and after seeing the pic linked on your message, I'm more curious/confused than ever.

          The light looks exactly like the depiction - same curved mounting base, etc.

          Maybe, for the last 13 years, I've thought I had something that wasn't all that correct (but functional and appropriately vintage)... and it's actually closer to the real deal than I'd initially thought?

          Very cool. Sorry I missed the original post.

          That other Cameron is a most excellent resource.

          Best,

          Cameron
          444,122SC
          Rose City








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        BACK UP LIGHT 444-544

        posted by  volvo15 on  Wed Sep 30 09:08 CST 2009
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri Oct 24 08:19 CST 2014
        [RELATED]

        I used the "bed kit" in my 63 544 in 1965 at Road America CanAm races, my wife and I couldn't find a hotel so we found a camp ground, it was very uncofortable, the seats don't match up very good, I had my head under the dash.But we were young and didn't care. Dick







<< < > >>
