Windshield Trim Clips 700

posted by  Steve on  Mon Sep 8 11:41 CST 2008
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Fri Oct 24 07:16 CST 2014
[RELATED]

Anybody replace the little black windshield trim clips holding the chrome/rubber side and top trim on? Are these press fit into holes in the A-pillar? How are they held in? I need to de-rust the area and I don't want to do more damage in removing them than I have to.

By the way, the trim is easy to remove by pulling it down (for the side trim) or across (the top trim), right across the clips.
--
See the 700/900 FAQ at the select shortcut button on the top right of the screen.








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Windshield Trim Clips 700

    posted by  rstarkie on  Mon Sep 8 12:13 CST 2008
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 10:14 CST 2014
    [RELATED]

    They slide off, but not before dealing with the small "keeper".

    The keeper is the small tab you see in the opening on one side. It measures (approximately)1/16" x 1/8".

    You need to get something behind that and pull up enough for it to clear the pin so it will keep sliding and come off.

    A dental pick might work or perhaps a length of thin monofilment line.

    Good luck,

    Randy








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Windshield Trim Clips 700

      posted by  Steve on  Mon Sep 8 12:33 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Oct 24 07:16 CST 2014
      [RELATED]

      Tough to see: mine are covered with butyl from the window replacement. I'll take a closer look.
      --
      See the 700/900 FAQ at the select shortcut button on the top right of the screen.








      •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

        Windshield Trim Clips 700

        posted by  rstarkie on  Mon Sep 8 13:40 CST 2008
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri Oct 24 10:14 CST 2014
        [RELATED]

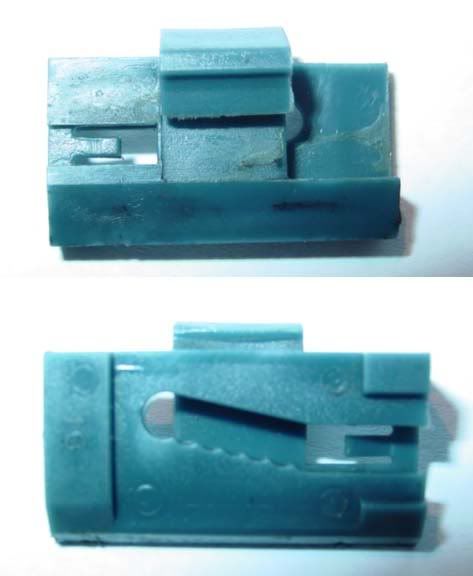

        Once you get the butyl off they will look like this:

        Photobucket

        A dental pick worked just fine for getting on the end of that tab to pull it up enough to slide it past the pin.

        Perhaps you have had a windshield replacement as the ones on this parts car have very little contact with the butyl.

        Randy








        •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

          Windshield Trim Clips 700

          uid 27's pic
          posted by  Art Benstein on  Mon Sep 8 13:52 CST 2008
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Fri Oct 17 20:10 CST 2014
          [RELATED]

          Hi Randy,

          Excellent photo. I'm no 700 guy, but I'd say that belongs in the FAQ!
          --
          Art Benstein near Baltimore

          Drive carefully. It's not only cars that can be recalled by their maker.







          •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

            Windshield Trim Clips 700

            posted by  rstarkie on  Mon Sep 8 15:53 CST 2008
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Fri Oct 24 10:14 CST 2014
            [RELATED]

            Thanks for your kind words, but I can not imagine there are very many people looking for a pictorial description of a window clip used in an old Volvo.

            Art, we have to get you into the 700 series cars (grin)

            Randy







          •   REPLY TO THIS MESSAGE    PRINT   SAVE

            Windshield Trim Clips 700

            posted by  Steve on  Mon Sep 8 15:48 CST 2008
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Fri Oct 24 07:16 CST 2014
            [RELATED]

            Right, Art, and to the FAQ it goes.
            --
            See the 700/900 FAQ at the select shortcut button on the top right of the screen.







<< < > >>
