IPD Sway Alignment 120-130

posted by  122_Canadian on  Tue Aug 19 04:59 CST 2008
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Tue Oct 20 07:51 CST 2009
[RELATED]

Last night I was putting the front suspension back together and found that my new IPD sway bar is coming very close to the cross member side. I added a captured nut (I've got a '66) and located it with the new bracket as per IPD's instructions. It looks like my sway is located too far back. This may change as I get the other side bolted up, but I was wondering if anyone else has had this problem? I have a little adjustment forward, but it doesn't look like enough. Has anyone had trouble with the sway hitting the cross member?

Craig








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Fixed. 120-130

    posted by  122_Canadian on  Fri Aug 22 14:06 CST 2008
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Tue Oct 20 07:51 CST 2009
    [RELATED]

    I've still got no idea why the bar is not the right size...had several measurements and all appear to be the same. No reason why this won't work on my car. It appears to be a 122 bar, but may be for the 1800. IPD are relatively useless with e-mail requests and I didn't have time to call. They probably don't care as the bar was used.

    Here's my solution.

    ]

    The adapter is made out of 3/8" plate and is plenty strong.

    Here we are with the bar in.

    ]

    ]

    It's closer than it looks, The washer on the endlink comes very close to hitting the cross member but just misses. That should do the trick.








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Fixed. 120-130

      posted by  volvorelix on  Fri Aug 22 14:37 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Thu Oct 23 21:56 CST 2014
      [RELATED]

      Have you had the chance to see where the bar lands once the suspension is loaded? This'll make more of a difference than unloaded...

      Also - from these and the prior pics, it's clear that the endlink bushings aren't centered. They appear to be favoring the aft end of the moment arms.

      Either way, it looks like you have a workable solution.

      For what it's worth - the 122 and 1800 models use the same front swaybar. There really shouldn't be any compatibility issues.

      Car looks very nice!

      Best,

      Cameron
      Rose City








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        Fixed. 120-130

        posted by  122_Canadian on  Sat Aug 23 12:31 CST 2008
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Tue Oct 20 07:51 CST 2009
        [RELATED]

        I had noticed the endlink problem. I've tried to get them centered, but they slip off the center position. When I've got the brakes, wheels and engine back in place I'll loosen the endlinks off and retighten them when loaded.








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Very Nice! 120-130

      posted by  RepairmanJackal on  Fri Aug 22 14:36 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Tue Jun 10 09:52 CST 2014
      [RELATED]

      That is a gorgeous suspension. Is that POR or just regular paint?

      I do not think there are any differences between the 1800 and 120 suspension aside from how they attach on the back. The parts are interchangable.

      Maybe that bar was just a factory second or something. That's a nice looking solution you worked out there!







      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        Very Nice! 120-130

        posted by  122_Canadian on  Sat Aug 23 12:34 CST 2008
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Tue Oct 20 07:51 CST 2009
        [RELATED]

        Thanks RJ, The arms are POR-15'ed the rest is automotive urethane (it's a Ford wheel paint colour and is sort of semi-gloss). There are lots of custom parts to come on this car. Just picked up the chrome bits from the chrome platers today. Cost a bundle, but nice.








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    IPD Sway Alignment 120-130

    posted by  122_Canadian on  Tue Aug 19 14:54 CST 2008
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Tue Oct 20 07:51 CST 2009
    [RELATED]

    I think my sway could be for a 140 instead of a 122...anyone have the dimensions?








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      IPD Sway Alignment 120-130

      posted by  RepairmanJackal on  Tue Aug 19 15:57 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Tue Jun 10 09:52 CST 2014
      [RELATED]

      sorry can't get to the IPD bar on the front of my wagon right now for measurements, but I can say (having swapped two complete front suspension units recently) that the anti-sway bar does not normally hit the crossmember.

      I'm not even sure how you mean it is hitting. It is much wider that the crossmember and the legs are too short to touch under normal circumstances... You mean the endlink-end is hitting the upper part of the crossmember?

      Do you have the stock swaybar laying about to check?








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        IPD Sway Alignment 120-130

        posted by  122_Canadian on  Tue Aug 19 16:53 CST 2008
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Tue Oct 20 07:51 CST 2009
        [RELATED]

        Hi RJ,

        Pictures are always better...have a look at these.



        Here's the bar fitted, with the brackets all the way forward so I have as much clearance as possible.




        I've tested it against my original bar and the ends are longer.







        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          IPD Sway Alignment 120-130

          posted by  1966-estate on  Tue Aug 19 17:22 CST 2008
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Thu Jan 30 13:50 CST 2014
          [RELATED]

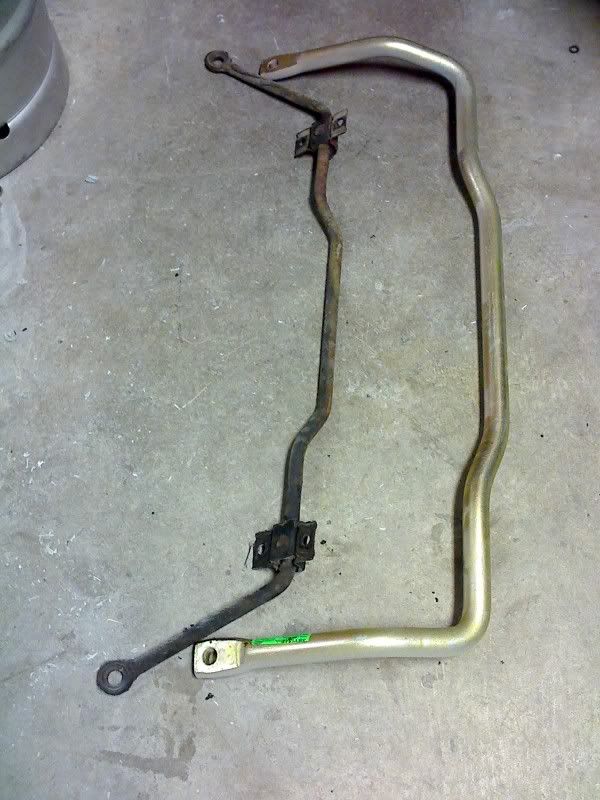

          I went out to the garage and snapped a pic of my 122 front IPD bar and a stock 140 front bar. As you will see theres a big dif between the two, the 140 bar is 36" 1/4 wide wide from the outside of the endlinks left to right. It's 9" from endlink to the top of the center bar on the outside edge (measuring from the floor up to the center bar, endlinks pointing down on the ground). The 122 bar is 34" 5/8 wide and 12" 3/4 from endlinks to top of bar. So the 140 bar is wider and shorter than the 122 bar, so if you had a 140 it should be even further away from the crossmember.
          Photobucket

          Looking at the bar you have, it looks different than the 122 IPD bar I have. Hope this helps.

          Chris.








          •   REPLY TO THIS MESSAGE    PRINT   SAVE

            Measurement Checked 120-130

            posted by  122_Canadian on  Wed Aug 20 16:50 CST 2008
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Tue Oct 20 07:51 CST 2009
            [RELATED]

            Our bars are the same width and have the same length arms. This is a bit of a problem, I was hoping they were different (aside from the hump in the middle that yours has). I've built my adapter brackets and will put them on and see what the difference is then. When the suspension is at ride height, the bar would pull away from the arms as it rotates around a point and describes an arc. I've seen photo's of other people's bars at full suspension drop and the endlink is still a comfortable distance away from the crossmember - maybe the early cars with the single bolt mounts in a slightly different place?

            Weird.








            •   REPLY TO THIS MESSAGE    PRINT   SAVE

              Measurement Checked 120-130

              posted by  1966-estate on  Wed Aug 20 17:12 CST 2008
              Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
              last visit: Thu Jan 30 13:50 CST 2014
              [RELATED]

              Interesting, I picked up a set awhile back with the intentions of putting them on the 66 I'm building and never got around to installing them. Maybe I'll have to put the set on the 67 I drive daily, Did you lower the front end alot with all the work you've been doing to your Canadian? I never did compare it to the extra stock sway I cut and doubled up on my 67.







              •   REPLY TO THIS MESSAGE    PRINT   SAVE

                Measurement Checked 120-130

                posted by  122_Canadian on  Thu Aug 21 04:37 CST 2008
                Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
                last visit: Tue Oct 20 07:51 CST 2009
                [RELATED]

                Yes, the Canuck is about 2" lower than stock (or at least that's what I'm shooting for - hard to tell until the engine goes back in). I'm going to test fit the brackets, but compare my suspension at not quite full drop to this IPD bar at full drop.

                Mine



                Other car






<< < > >>
