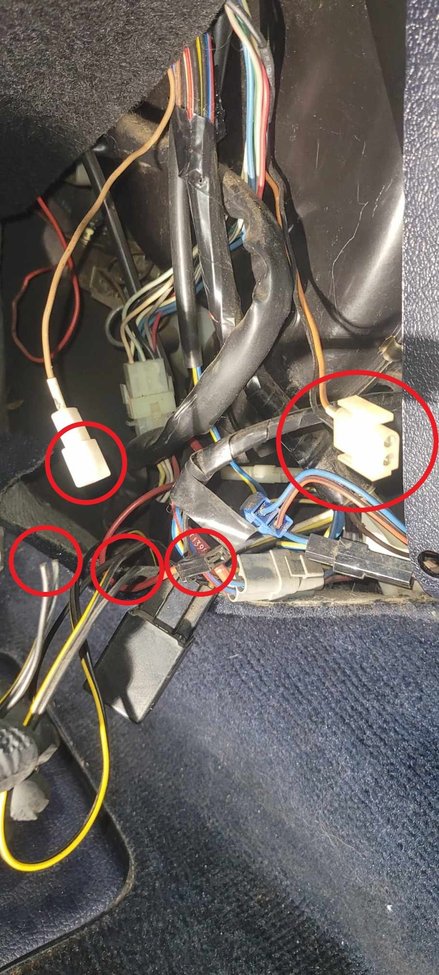

Hey folks, I know this is a bit of a longshot, but I figured it's worth a shot. I was doing some tidying up in the driver's side footwell of my '88 245 DL. I noticed several unused plugs and what appears to be one cut pair of wires. Does anyone have any idea what these go to? I can understand if the plugs aren't occupied, but the cut wires seems, um...not factory. Since this one is pretty much base trim, there might be stuff that isn't used, but I can't figure out what the yellow wire with black tracer is and black wire with yellow tracer are for. Thanks in advance for your help!

Hopefully the image uploads. If not, the main concern is cut wires mentioned above.

Wiring diagrams:

Mitchell Service Volvo Wiring Diagrams, and other stuff
http://www.v8volvo.se/mekartips/volvo/

https://ozvolvo.org/archive/
Use browser page search for penfound and / or wiring. Two wiring dioagrams, for 1984 and 1992.5 show up. While not 1988 may help. Helps me with finding ground connection to service!

Dave Barton
https://www.prancingmoose.com/volvoharnesses.html




--
