Hi Folks,

Anybody have the correct part number for the front u-joint to mate to a M47 manual transmission?

Tasca lists #3520997 as "front", but with no parts illustration to confirm this.

FCP tech email states part #3520997 is for center and rear positions only.

So...

And on the subject, which u-joint is best? Is it worth the investment to get $54 OEM versus $11 Meyele?

FYI: The quibo I received from FCP as Volvo OEM #1220843 is the BMW quibo Febi #04435.

That is, the FCP OEM Volvo quibo is actually the stronger BMW quibo.

Were there any other numbers on it?
Dan

Quibo box marked as...

FCP label: 1220843/57

Febi label: 04435

Repl. No. 26 11 7 511 454

to fit BMW

Diverse Typen Volvo PKW

Thanks, were there any numbers marked on the part?

Dan

Markings on the part itself:

GAB01-017

That's the good one.
Dan

OK!
28 posts and we figured it out... :)

So whats the problem with the flex discs on your cars? My 87 and 88 look just fine still.

This is the guibo I just installed in my '93 wagon: https://www.fcpeuro.com/products/driveshaft-flex-disc-guibo-bilstein-26111209168

It fits fine. I'd stay away from uro or meyle crap.

FCP says it's not for 93 240's, do you use the same bolts?
Dan

from Kitty's post above linking to turbobricks thread on the flex/guibo cross fit BMW

The one with the part number for BMW see posts 8,9,10

http://forums.turbobricks.com/showthread.php?p=2945486#post2945486

Yes. It was identical in size/thickness to the one I replaced. Wonder why they say it's not for the 93? It should fit any M47 application.

I guess it's just a BMW part number and the car I entered is the 93 Volvo? I will probably get one, the price seems reasonable.
Thanks
Dan

M47s cnxtion to the drive shaft is not a U Joint, but a Flexible Rubber round - 6 bolts run thru - that sits between the output STAR 3 pts on the tranny and the similar STAR 3pts on the drive shaft.

--- in BMW speak a Guibo.

#13

http://volvopartslisle.com/assembly/77558018/Propeller-Shaft

Thanks for the info about the guido.

Now, should I go ahead and swap in a new one? Curent unit is at 200k miles.

when they fail, they shred. and you will know it with warning. Unless you race it.

The only ones I've had fail while driving were in a BMW...rumble slap slap rumble...not going anywhere. TOW pls.

scroll to see pics of fails

as far as yours, depends on oil leakage onto it, how aggressively you drive, visual inspection... (dry rot). Do you do a lot of driving in the mts, with lots of hiSpeed downshifting...5th to 4th and back?. That's why Volvo replaced the steel UJoint, as a damper to the clutching shift on the drivetrain, as opposed to the old OD internal damper in the M46.

if you do replace yourself pay close attention to orientation and to how those 6 bolts go.

Take pictures before and as you take it apart.

https://www.google.com/search?q=Guibo&tbm=isch&tbo=u&source=univ&sa=X&ved=0ahUKEwii_sz_7sjLAhULqh4KHUx8C_cQsAQIOw&biw=1280&bih=678#tbm=isch&q=Guibo&chips=q:guibo,g_1:bmw+2002

Thread in the turbobricks:

http://www.turbobricks.com/forums/showthread.php?s=b5ac06413b08f626f6db66cb8427f144&t=187829


Crack in bushing materials at 5:20 Pm of the clock.




According to this article, you can purchase from a BMW vendor a flex coupler that is far stronger than the Guibo OEM for 240 / 740. Nice to know.

http://forums.turbobricks.com/showthread.php?t=269229

Hope that helps.
--
Something, something, something, something ....

Auserity and pure orgasm

just drive 68 Beemer

http://www.cheatsheet.com/wp-content/uploads/2015/09/bmw-2002-interior-1024x678.jpg?d74352

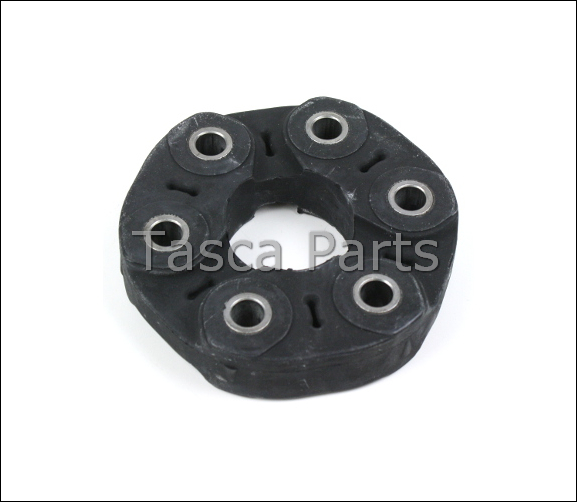

For the front coupler, the OEM version Guibo and is Volvo PN 1220843. For your 1992 245, MrNabisco!?!?!

Tasca's entry:
http://www.tascaparts.com/oe-volvo/1220843



See this thread as to the BMW part:
https://www.brickboard.com/RWD/volvo/1413357/220/240/260/280/flex_joint_saga_near_total_failure_uro.html

The BMW reference is to a BMW part, I believe made by the same company, or another OEM for BMW, that is more rigid and of superior, stronger construction than the factory install or what you purchase today. Some MMs thicker, tho. Is a drop in for the M47 equipped rear wheel drive Volvo.

I have a spare Guibo flex coupler, yet it's 50 miles away in a box, contained in another box. Else I'd provide an image, front and back. The OEM is beefy. Most after market is Meyle, not made in Europa, of course. Like installing Meyle strut mounts. (Not to do that again.) iPd also sells the MTC (URO) version. FCP Groton no longer sells thw flex coupler.



Nice.

Cast iron alloy block, cast iron cylinder head, rear-wheel drive and the BMW manual transmissions are not overly complicated. I like the spartan interior, like the early 240s and before. (Does not like leather at all.)

And they *still* build them with inline 6-cylinders with rear wheel drive.

Happy Friday!

Mac Duffed.
--
Something, something, something, something ....

Thanks for the info.
Found it at FCP for $30 less. Looks like they now stock more OEM parts.
https://www.fcpeuro.com/products/volvo-drive-shaft-flex-disk-oem-1220843

Love those 60's Beemers. Only downside is no cruise control.
As a contrast, a friend of mine has an 88 iX and it is full of all kinds of gauges. Nice solid 4-wheeld drive car, but busy on the inside.

OEM doesn't mean Volvo, you need to ask who does manufacture the part.
Dan

Right... OEM versus "Genuine Volvo". Not the Tasca site, the FCP site nor the Lisle site state a manufacturer.

Whatever happened to "parts is parts".

Already ordered the part, so it is what it is now. I emailed FCP for the manufacturer. Will advise.

Please let us know about the manufacturer for the part, I probably should replace mine also.
Dan

From FCP regarding Guibo PN 1220843:

"...this would be the same supplier as the Genuine piece. It just can't be listed as such because of licensing agreements."

Interesting, let us know if the Volvo name has been ground off or what other identifying marks may be on it when you get it.

I have bought rear TABs in the past with the same story that had what I assumed was the name Boge ground off.
Dan

CB - very nice and you just can't beat the way an original 2002 drives--but--I can feel the seat springs poking me in the back and bottom just looking at the photo :-) Dave

Dave,
yes the seats were crap. a friend who is 6'4, and this is one of the few cars he could comfortably fit in, bolted in a Volvo seat from a 140.

the bodies couldn't resist the eastcoast winter salt baths either, had to weld in plates in the trunk as the rear shock towers rusted thru. I also had a 68 1602 - basically the same car with a 1600cc engine - with a single barrel solex carb that could cruise all day at 80mph with that 4 speed and not drive you nuts with engine noise, like the then current B18 tractor engines that Volvo was running.

I always said that BMW's only failure was that it didn't build a body strong enough to last the life of the energy that car could put out.

But is was a small window imho, the later models with the square tail lights, like a fine wine that made its reputation on a few years of remarkable vintage.

the rest of the story

http://www.cheatsheet.com/automobiles/bmws-2002-how-this-car-made-the-company-what-it-is-today.html/?a=viewall

Thanks guys!

I'm thinking I'll swap in a new OEM unit. I'm sure Dave can get it in correctly.

I have tried to mellow my driving style to help preserve my brick, but if he's gonna drop the driveshaft I might as well refit all the joints.

GUIBO....Google it

https://www.google.com/search?q=Guibo&tbm=isch&tbo=u&source=univ&sa=X&ved=0ahUKEwii_sz_7sjLAhULqh4KHUx8C_cQsAQIOw&biw=1280&bih=678#tbm=isch&q=Guibo&chips=q:guibo,g_1:bmw+2002

Most M47s don't have a front u-joint on the driveshaft, but a rubber flex joint.

However, there are some that do have a front u-joint and the part number you have found is the correct updated part number.

--
Eric
