94 940 timing problem 900

posted by  monkeyman on  Sat Jun 14 17:41 CST 2014
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Wed Oct 8 07:11 CST 2014
[RELATED]

Hey friends,

I just changed the head gasket on my moms 94 940 non turbo. I got it all reassembled and now Im having drivability problems. It feels like the trans is slipping and it won't go over 60 mph. When I changed the belt the rear timing cover was disintegrating so I replaced it with a new one. I suspect I screwed up the timing when replacing the belt. Does that sound likely? BTW I changed the head gasket not because of a leak but because the 1 exhaust manifold bolt was broken and I need to remove the head to have a machine shop install a new one. thanks for any help.








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    yes most likely 900

    posted by  trichard on  Sun Jun 15 05:23 CST 2014
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 05:52 CST 2014
    [RELATED]

    set the crank to TDC,
    verify the distributor is pointing to number 1 under the cap
    and then check your cam sprocket
    which will most likely be off a tooth or two from tdc








    •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

      yes most likely 900

      posted by  jd620 on  Sun Jun 15 11:29 CST 2014
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Oct 17 07:42 CST 2014
      [RELATED]

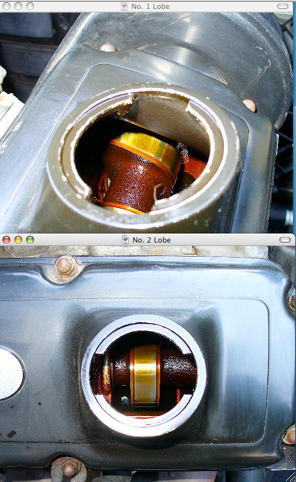

      Just a quick note. TDC is easily found by looking at the cam #1 lobes through the oil add hole in the valve cover. Both lobes will be up (pointing + and - roughly 45 degrees from vertical) at TDC.
      --
      Mine: 3-940s running, 2-740 and 1-940 parts cars, and 3 1959 John Deere 630s (1 for parts), dtr1:3-940s, dtr2:1-740, 1








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    94 940 timing problem 900

    posted by  Volvo From Heck on  Sat Jun 14 17:51 CST 2014
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Oct 13 20:56 CST 2014
    [RELATED]

    After many years of doing amateur and professional auto repair if there's one thing I've learned -- have a problem? where were hands "monkeying" :> ) around last? Yes, it does sound like you have timing issues. Easy to do--easy to correct - no harm done. -- Dave







<< < > >>
