Regina wiring? Pictures 700

posted by  someone claiming to be mmal231294 on  Tue Jan 5 05:00 CST 2010 [RELATED]

Hi all

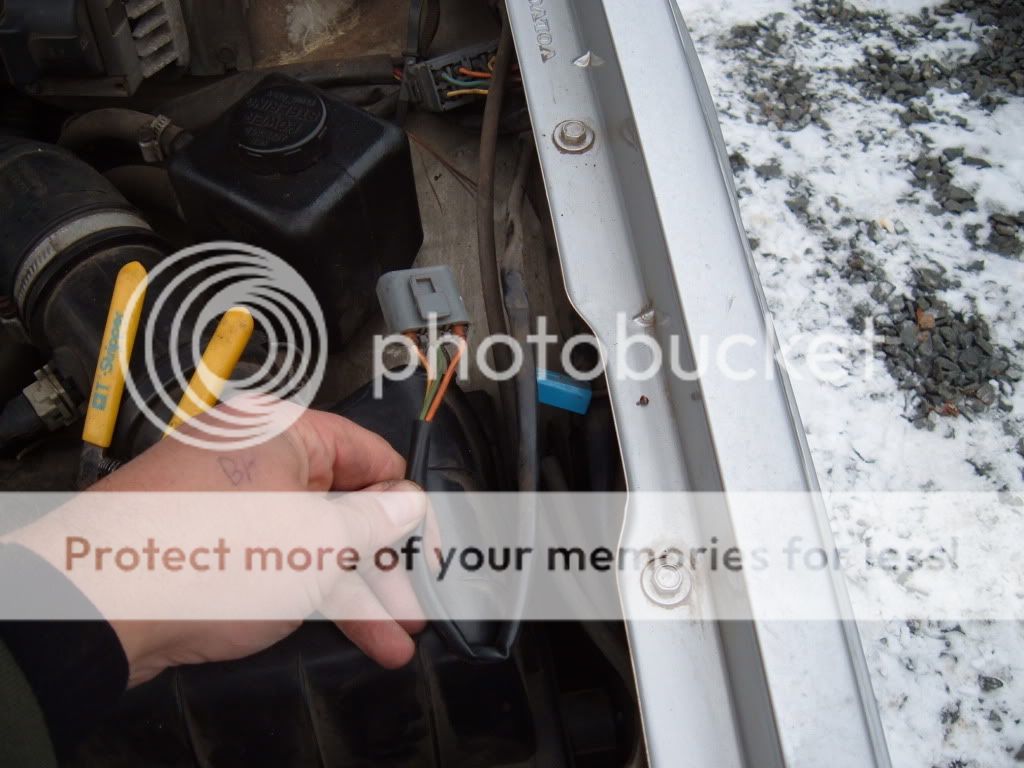

I think I found the starter remore socket? And found an unplugged connector behind the airbox..anyone know if this is indeed the starter remote and what the unplugged connector goes to? See below.







  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    NOOOOOOOOOOOOOO 700

    posted by  trichard on  Tue Jan 5 06:26 CST 2010
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 05:52 CST 2014
    [RELATED]

    the little blue rectangle next to it if memory serves








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      NOOOOOOOOOOOOOO 700

      posted by  mmal231294 on  Tue Jan 5 07:50 CST 2010
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Mar 18 12:34 CST 2011
      [RELATED]

      Hahaha I am slow but not tarded. I connected +12v fro battery to Blue small test port and again the solenoid clicked but no turn over. Just picked up a rebuilt and am about to slap it in there...we shall see. Thanks. BTW what is that three wire conector anyway?








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Regina wiring? Pictures 700

    posted by  someone claiming to be mmal231294 on  Tue Jan 5 05:06 CST 2010 [RELATED]

    Arrrgh wont let me post pix not logged in...see link please.

    http://i436.photobucket.com/albums/qq88/mmal231294/regina001.jpg








    •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

      Right place - Wrong socket 700

      uid 18083's pic
      posted by  lucid on  Tue Jan 5 08:42 CST 2010
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Oct 24 12:31 CST 2014
      [RELATED]

      NO, not that one...

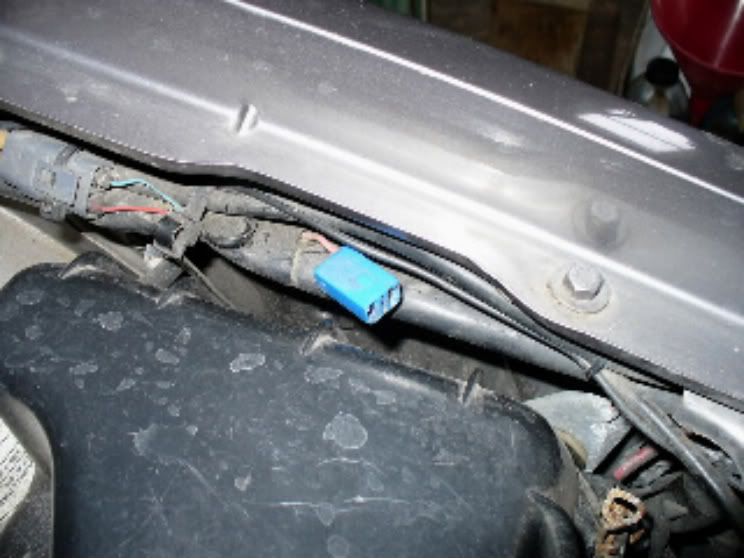

      It's THIS one, also in your picture...



      The wiring is in parallel tothe ignition switch: Battery +12V from a jumper has to get thru the Neutral safety switch, then to the starter solenoid.

      --
      Bruce Young, '93 940-NA (current), 240s (one V8), 140s, 122s, since '63.








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        Right place - Wrong socket 700

        posted by  mmal231294 on  Wed Jan 6 01:11 CST 2010
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Fri Mar 18 12:34 CST 2011
        [RELATED]

        Sorry I confused you and Trichard. I did find the test socket(Small Blue one).
        But in the process I found the unconnected 3 wire connector...any idea what it was for?








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          Right place - Wrong socket 700

          posted by  RobCooper on  Thu Jan 7 02:57 CST 2010
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Tue May 13 17:31 CST 2014
          [RELATED]

          I believe it is the connector for the cruise control unit, when an option.

          Rob
          91 740 Rex








          •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

            Right place - Wrong socket 700

            posted by  RobCooper on  Thu Jan 7 08:12 CST 2010
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Tue May 13 17:31 CST 2014
            [RELATED]

            great,

            I just got my car to pass smog. FYI, I found a vacuum leak under the MAP (I think this is what it is called) sensor which is screwed down onto the driver side strut area.

            The vacuum line going to it attaches to the underside of MAP sensor with a rubber tube which was cracked.






<< < > >>
