placement of windshield washer bottle 120-130

posted by  CARRODEL70 on  Mon Jul 28 17:44 CST 2008
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Fri Aug 27 03:45 CST 2010
[RELATED]

Need help in locating the spot for the placement of windshield washer bottle.
I have a 1964 2 door 122s, the previous owner removed the bottle and I would like to replace the reservoir. description of the location or pictures where it belongs would be of much help. Thanks








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    placement of windshield washer bottle 120-130

    posted by  67122 on  Tue Jul 29 10:17 CST 2008
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Aug 25 06:05 CST 2014
    [RELATED]

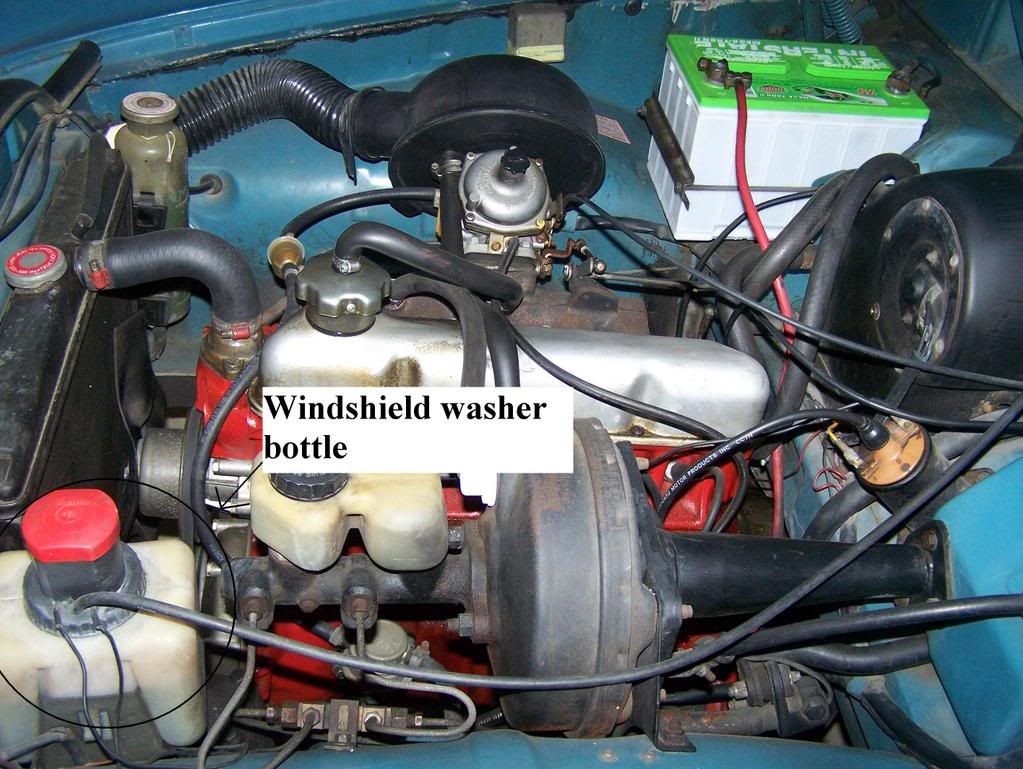

    Here is the picture.
    It might be in a different spot if the car is right-hand drive.
    but if its left hand drive it should be there or a little to the right. just look for the bracket (which is holding the bottle in- included in picture), if you have one.









    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      placement of windshield washer bottle 120-130

      posted by  derek uk on  Wed Jul 30 00:02 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Oct 24 12:33 CST 2014
      [RELATED]

      This is the later type washer bottle. Luis has a '64/'65 and that would normally have a smaller round bottle up on the inner wing just in front of the hood hinges. Uses a seperate pump with an alloy cover. When these pumps go bad the system is usually converted to the later type as shown.
      From various other posts I was surprised to find that Volvo sold Amazons in "dry/hot" parts of the USA without a washer system. That's maybe how the bag type got fitted, perhaps by the dealer or an earlier owner. I've got a bag type washer kit in a box with a oficial Volvo part # and info sticker on it. It's probably from the '70s. The kit was made in Japan!








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      placement of windshield washer bottle 120-130

      posted by  CARRODEL70 on  Tue Jul 29 17:04 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Fri Aug 27 03:45 CST 2010
      [RELATED]

      Thanks! Not having a copy of the owners manual complicates things, but all of you make owning and restoring these cars much easier. Thanks for your input.
      Luis








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    placement of windshield washer bottle 120-130

    posted by  someone claiming to be sdewolfe on  Tue Jul 29 07:23 CST 2008 [RELATED]

    Howdy,

    Volvoamazonpictures.se to the rescue:

    http://www.volvoamazonpictures.se/documents/handbooks/OwnersHandbook%20(121-122S)%201966.pdf

    Sorry, I can't add the html as a "Claim to be". Just cut and paste. The picture you want is on page 12 of 57. The washer bottle is located on the left fender well, just in front of the master cylinder. This is much different from my '66 that has it located on the right fender well. Hope that helps.

    --sd







    •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

      placement of windshield washer bottle 120-130

      posted by  walrus3 on  Tue Jul 29 15:09 CST 2008
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Mon Dec 2 14:20 CST 2013
      [RELATED]

      My 66s and 67 had them on the LEFT!
      Some of the earlier ones had a flexible bag reservoir and a piston pump with a push
      knob sticking out under the dash, i.e. my 1963 4-door.
      --
      George Downs, Bartlesville, Heart of the USA!








      •   REPLY TO THIS MESSAGE    PRINT   SAVE

        placement of windshield washer bottle 120-130

        posted by  122_Canadian on  Wed Jul 30 06:32 CST 2008
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Tue Oct 20 07:51 CST 2009
        [RELATED]

        Mine was on the left...I've since relocated it in front of the radiator...get's it out of the engine area completely.

        Craig








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          placement of windshield washer bottle 120-130

          posted by  CARRODEL70 on  Thu Jul 31 13:01 CST 2008
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Fri Aug 27 03:45 CST 2010
          [RELATED]

          Thanks all for the solutions. I installed the bottle on the drivers side in the area just behind and above the steering box.
          Special thanks to sdwolf for the link to the owners manual.
          Luis







<< < > >>
