Asking the experts. Brief cutout at about 3/4 throttle. 200

Once again time to ask the experts! My 1982 240 cuts out (kind of a short single buck) at 1/2 to full throttle when accelerating from a stop. It seems like it only happens when I'm below 1/2 tank of gas. My main fuel pump failed about 5k ago and I replaced it with a Bosch. Now since my problem seems to always happen when the fuel is below 1/2 tank I'm wondering if the booster fuel pump is going bad. Am I looking in the wrong direction possibly electrical? Is there anything else that should be looking at or any trouble shooting tips?

As always thanks for the help. Without you guys my 240 would probably have been relegated to the junk yard a couple of times!!








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Asking the experts. Brief cutout at about 3/4 throttle. 200

    The 1/2 tank symptom sure points to a pre pump problem. You can see if it runs (independent of the Main pump) by removing Fuse 5 and jumpering +12V to the Right side Fuse contact. The +12V is available at the "hot" (Left) side of fuses 6 —10.

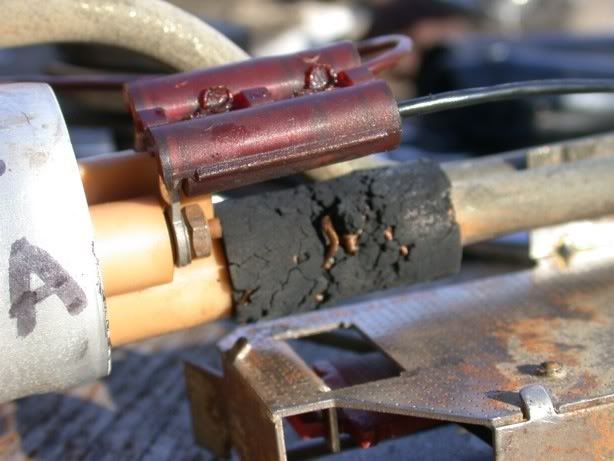

    But even if it runs, hose rot as shown below will let the Main pump suck air when the level gets low.


    --
    Bruce Young
    '93 940-NA (current), 240s (one V8), 140s, 122s, since '63.








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Asking the experts. Brief cutout at about 3/4 throttle. 200

    I had a similar problem in a 700, with low gas and while accelerating in a right turn it would cut out. If memory serves (this was four or five years ago), I replaced the fuel pressure regulator and the problem went away.








  •   REPLY TO THIS MESSAGE    PRINT   SAVE

    Asking the experts. Brief cutout at about 3/4 throttle. 200 1981

    Hard acceleration may put more load on engine systems than other operating modes including greater fuel flow or more demanding ignition conditions. So any weakness may show up here first. I think it could be an ignition or fuel problem. Just to eliminate the easy things first, check for air leaks, timing, and advance. Consider replacing ignition parts if that has not been done recently. After that, fuel flow, injector clogging / unequal flow rate, air meter movement, and compression. Try slowing revving the engine in neutral and watch for any points of sever shaking. People here can advise on ways to check these.







<< < > >>
