Gas cap key 444-544

posted by  volvo65 on  Fri Apr 13 09:06 CST 2007
Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
last visit: Sat Aug 21 09:29 CST 2010
[RELATED]

Anybody know how to remove the key cylinder on the Volvo gas cap, the one that is sort of pentagon shaped with a pentagon shaped flap that goes over the keyhole? The metal flap says "Volvo" on it so I'm pretty sure it's OEM.
--
'61 PV544 - '65 PV544 - '64 Lincoln Continental








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Gas cap key 444-544

    posted by  KlausC on  Fri Apr 13 14:37 CST 2007
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Fri Oct 24 10:15 CST 2014
    [RELATED]

    A locksmith can unlock it in less than 30 seconds. When mine broke, I called AAA and after he took off the cap, I grabbed a phillips and took the back off and removed the locking plate. I never had a key for it.

    Klaus
    --
    1975 164 w/174,800mi (Sold) 1995 850T w/91,000mi, 1998 V70R w/129,000mi








  •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

    Gas cap key 444-544

    posted by  walrus3 on  Fri Apr 13 11:35 CST 2007
    Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
    last visit: Mon Dec 2 14:20 CST 2013
    [RELATED]

    Don't think it is OEM but is a factory-authorized aftermarket item made by
    another company (RASO or some such?) There are lots of them out there.
    Do you have the cap off?
    --
    George Downs Bartlesville, Heart of the USA!








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      WASO 444-544

      posted by  RepairmanJackal on  Fri Apr 13 16:37 CST 2007
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Tue Jun 10 09:52 CST 2014
      [RELATED]

      The maker is "WASO" I just ran across a spare cap and key set in my parts "tub" while sorting things. I'd agree that the keys are fairly heterogeneous, but I'm sure that the subtle differences make the difference.








      •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

        Correct! 444-544

        posted by  walrus3 on  Sat Apr 14 03:39 CST 2007
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Mon Dec 2 14:20 CST 2013
        [RELATED]

        I've experienced several problems with lost keys in these gas caps.
        In some cases the keys were lost when the cap was unlocked, which helps
        a lot.
        The lock is pretty rudimentary, with cross slats working ILO tumblers.
        What I have done is to take them out and fit the slats I had to the key
        I had and any I could not get to fit I discarded (although if one were
        interested enough he could probably modify them to fit).
        That somewhat reduces the "security" of the lock but most folx, even thieves,
        don't carry around an assortment of WASO keys so they are probaby deterrent
        enough that way. Volvos are pretty hard to siphon from anyway, even with the
        best "Oklahoma credit card". What you really want to avoid is having someone
        put other stuff in your tank, like sand, sugar, ethanol, etc.
        --
        George Downs Bartlesville, Heart of the USA!








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          Locked/Unlocked 444-544

          posted by  RepairmanJackal on  Sat Apr 14 16:27 CST 2007
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Tue Jun 10 09:52 CST 2014
          [RELATED]

          A little off-topic...
          I've always liked these Waso caps as you have to re-lock the removed cap to remove your keys while fueling. I've always liked that little inconvenience as it makes it *very* hard to leave the cap behind when you leave the gas-station.








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          Correct! 444-544

          posted by  volvo65 on  Sat Apr 14 06:16 CST 2007
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Sat Aug 21 09:29 CST 2010
          [RELATED]

          I'll work with another key I have and see if I can finesse it open. Good point about lockining it in order to keep someone from putting stuff in the tank rather than taking it out, I'm going to be rebuilding the engine soon.
          --
          '61 PV544 - '65 PV544 - '64 Lincoln Continental








    •   REPLY TO THIS MESSAGE    PRINT   SAVE

      Gas cap key 444-544

      posted by  volvo65 on  Fri Apr 13 14:14 CST 2007
      Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
      last visit: Sat Aug 21 09:29 CST 2010
      [RELATED]

      Unfortunately the cap is on. I either need to remove the cylinder so I can take it in and get a key made, or figure out how to get it off without damaging the down spout. Any ideas?
      --
      '61 PV544 - '65 PV544 - '64 Lincoln Continental








      •   REPLY TO THIS MESSAGE Replies to this message will be emailed.    PRINT   SAVE

        Gas cap key 444-544

        posted by  walrus3 on  Fri Apr 13 15:54 CST 2007
        Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
        last visit: Mon Dec 2 14:20 CST 2013
        [RELATED]

        I assume that it is locked then.
        They are pretty easy to pick......
        Once you get it off you can take it apart and rearrange the "tumblers"
        to match some other gas cap key you might have.
        --
        George Downs Bartlesville, Heart of the USA!








        •   REPLY TO THIS MESSAGE    PRINT   SAVE

          Gas cap key 444-544

          posted by  volvo65 on  Sat Apr 14 06:13 CST 2007
          Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
          last visit: Sat Aug 21 09:29 CST 2010
          [RELATED]

          My problem is trying to figure out how to get it off with out damaging the downspout. I have a key to a similar lock on my '61, I'll play with that.
          --
          '61 PV544 - '65 PV544 - '64 Lincoln Continental








          •   REPLY TO THIS MESSAGE    PRINT   SAVE

            Gas cap key 444-544

            uid 9973's pic
            posted by  CVOLVO on  Sat Apr 14 06:31 CST 2007
            Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
            last visit: Fri Jul 13 18:40 CST 2012
            [RELATED]

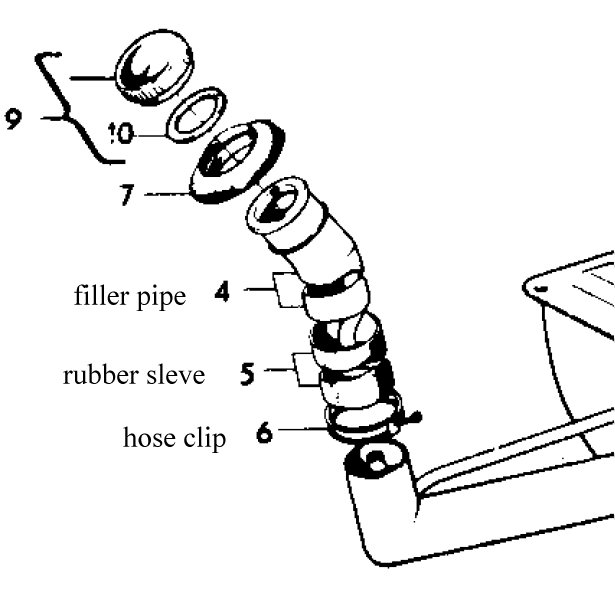

            I thought somebody may have given you this possible solution. In the diagram, see if you can loosen the hose clip(s) - my 444 has 2. You should be able to pull the filler neck and gas cap off. I did find a WASO key blank on eBay, but did have a working key. Good luck.


            --
            Cam a.k.a. CVOLVO.COM








            •   REPLY TO THIS MESSAGE    PRINT   SAVE

              Gas cap key 444-544

              posted by  volvo65 on  Sat Apr 14 08:33 CST 2007
              Author: [PROFILE] [EVERY POST] [THREADS] [BEST POSTS] RSS Feed     [IGNORE ALL POSTS]
              last visit: Sat Aug 21 09:29 CST 2010
              [RELATED]

              Thanks!
              That looks like my best bet. I'm going to call my roadside assistance folks first but if they won't do it yours looks like the way to go
              --
              '61 PV544 - '65 PV544 - '64 Lincoln Continental







<< < > >>
