delforza 740gl front strut

Volvo 700 -- delforza 740gl front strut
POSTED BY
delforza[SHOW ALL]
DATE
HTML

Spare wire?

Volvo 200 -- Spare wire?
POSTED BY
VinceInMt[SHOW ALL]
DATE
HTML
CITY
Billings
STATE
MT
COUNTRY
US
NOTE
Where does this go?

Volvo OEM Trailer Reciever

Volvo 700 -- Volvo OEM Trailer Reciever
POSTED BY
Sand_Squid[SHOW ALL]
DATE
HTML
CITY
Bartlett
STATE
TN
COUNTRY
US
NOTE
The infamous _dealer_only_ reciever bar needed for the OEM Trailer Hitch.

Volvo OEM Trailer Hitch mounting detail

Volvo 700 -- Volvo OEM Trailer Hitch mounting detail
POSTED BY
Sand_Squid[SHOW ALL]
DATE
HTML
CITY
Bartlett
STATE
TN
COUNTRY
US
NOTE
(2 per side) M12 x 1.75 x 40 bolts through the flat plate to frame. (2 per side) M12 x 1.75 x 60 bolts through the box section to the frame.

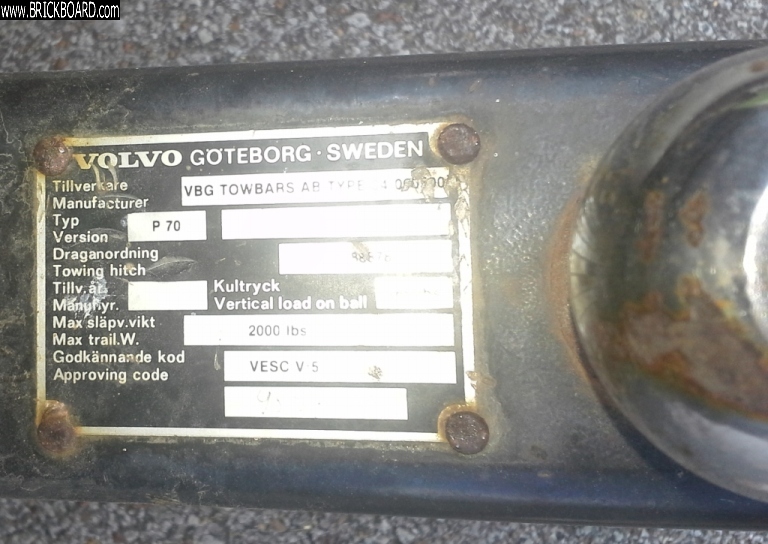

Volvo OEM Draw-Bar

Volvo 700 -- Volvo OEM Draw-Bar
POSTED BY
Sand_Squid[SHOW ALL]
DATE
HTML
CITY
Bartlett
STATE
TN
COUNTRY
US

Ovlov

Volvo 700 -- Ovlov
POSTED BY
Sand_Squid[SHOW ALL]
DATE
HTML
CITY
Bartlett
STATE
TN
COUNTRY
US
NOTE
Bent window lift track.

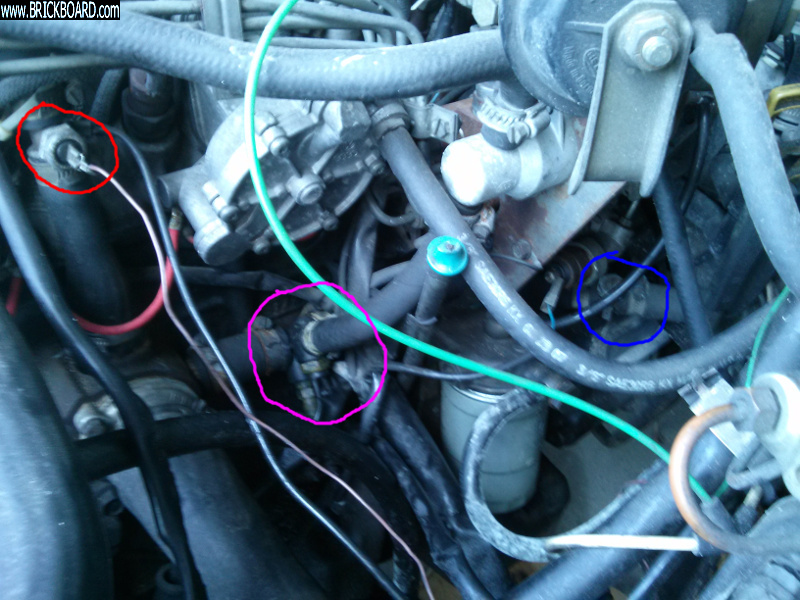

1985 760 turbodiesel

Volvo 700 -- 1985 760 turbodiesel
POSTED BY
otherdalek[SHOW ALL]
DATE
HTML
CITY
Gainesville
STATE
FL
COUNTRY
US
NOTE
Coolant temperature sensors

Anatomy of the Fuel Pressure Regulator

Volvo 700 -- Anatomy of the Fuel Pressure Regulator
POSTED BY
Brick Skinner[SHOW ALL]
DATE
HTML
CITY
Houston
STATE
TX
COUNTRY
US
NOTE
Original FPR off of a 1989 740T. Pic is a close up of the diaphragm. The rubber is obviously degraded and allowing fuel to seep through to the vacuum side. Upper right corner of pic shows a minor flaw in manufacturing (ribbed seal misaligned?), no negative effects on performance. Center of diaphragm houses a flattened, swiveling ball backed by a spring for push-pull retention in the seat. Thoughts: 1)FPR was destined to fail eventually. 2)Ethanol fuel may have been the last straw in the service life of this part.

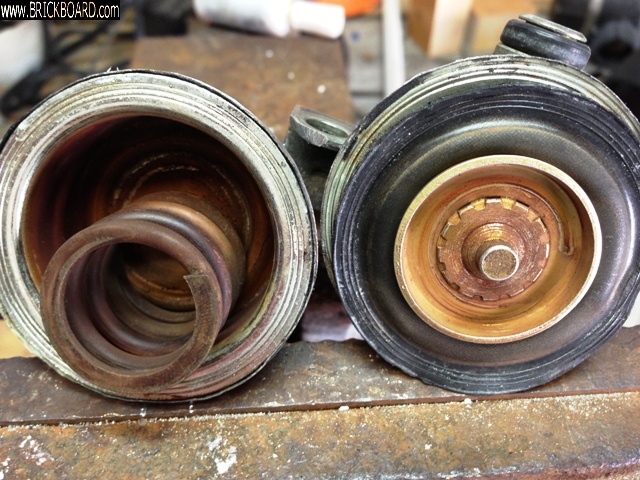

Fuel Pressure Regulator

Volvo 700 -- Fuel Pressure Regulator
POSTED BY
Brick Skinner[SHOW ALL]
DATE
HTML
CITY
Houston
STATE
TX
COUNTRY
US
NOTE
FPR off a 1989 740T. This is the vacuum side. The spring is pretty hefty. There is a fine film of rust coating the entire inside which is probably normal although this seal is in fact leaking. There is also a slight manufacturing defect on the diaphragm seal (far right, ribbed part), although I doubt it had any negative effect on functionality.

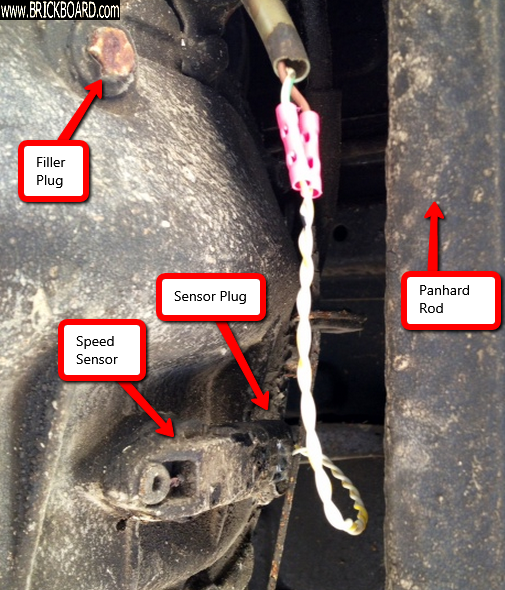

740 Speedometer Sensor Repair

Volvo 700 -- 740 Speedometer Sensor Repair
POSTED BY
BobbyC[SHOW ALL]
DATE
HTML
CITY
Waxahachie
STATE
TX
COUNTRY
US

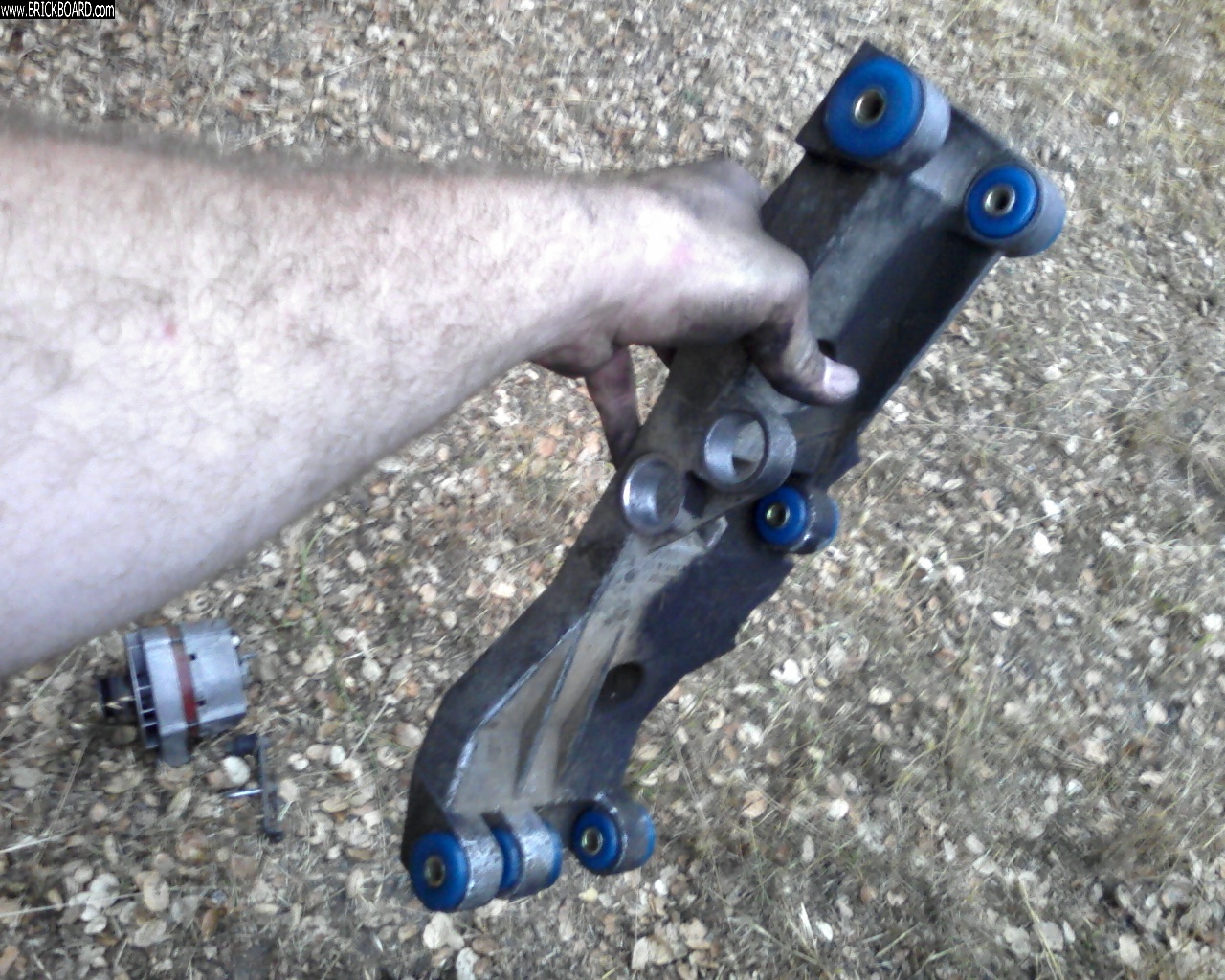

90 740 turbo's AC and Alternator bushing/mounthing bracket

Volvo 700 -- 90 740 turbo's AC and Alternator bushing/mounthing bracket
POSTED BY
Will740turbo[SHOW ALL]
DATE
HTML
CITY
Portland
STATE
OR
COUNTRY
US
NOTE
This is the mounting bracket for the AC and Alternator for my 90 740 turbo with a B230ft. There are EIGHT bushings here. The PS pump does not have bushings and is on the other side of the engine.

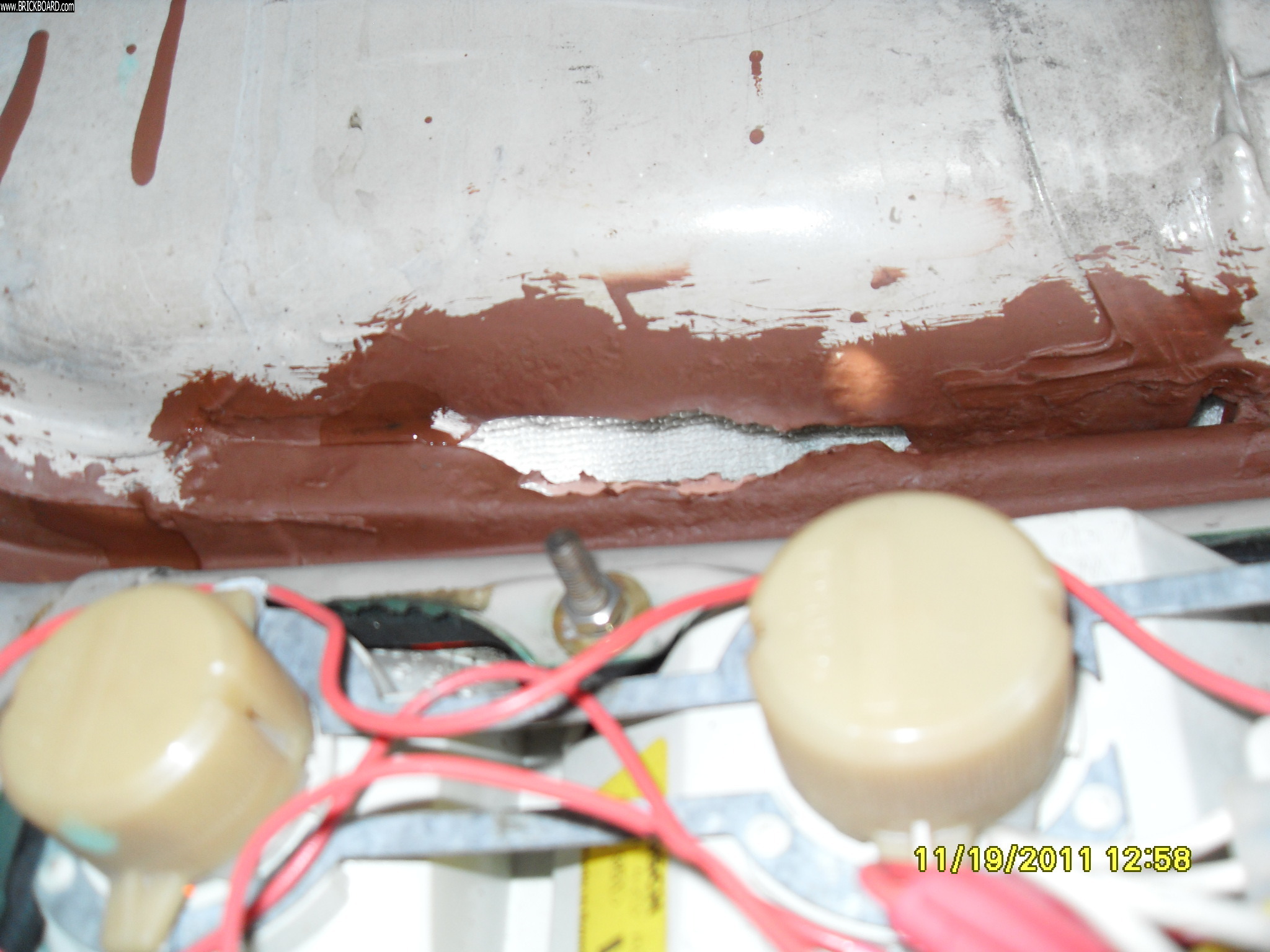

Tail Light Rust

Volvo 200 -- Tail Light Rust
POSTED BY
81242DLB21FCA[SHOW ALL]
DATE
HTML
CITY
San Francisco
STATE
CA
COUNTRY
US
NOTE
This happened because my tail light assembly had a small leak for several years.

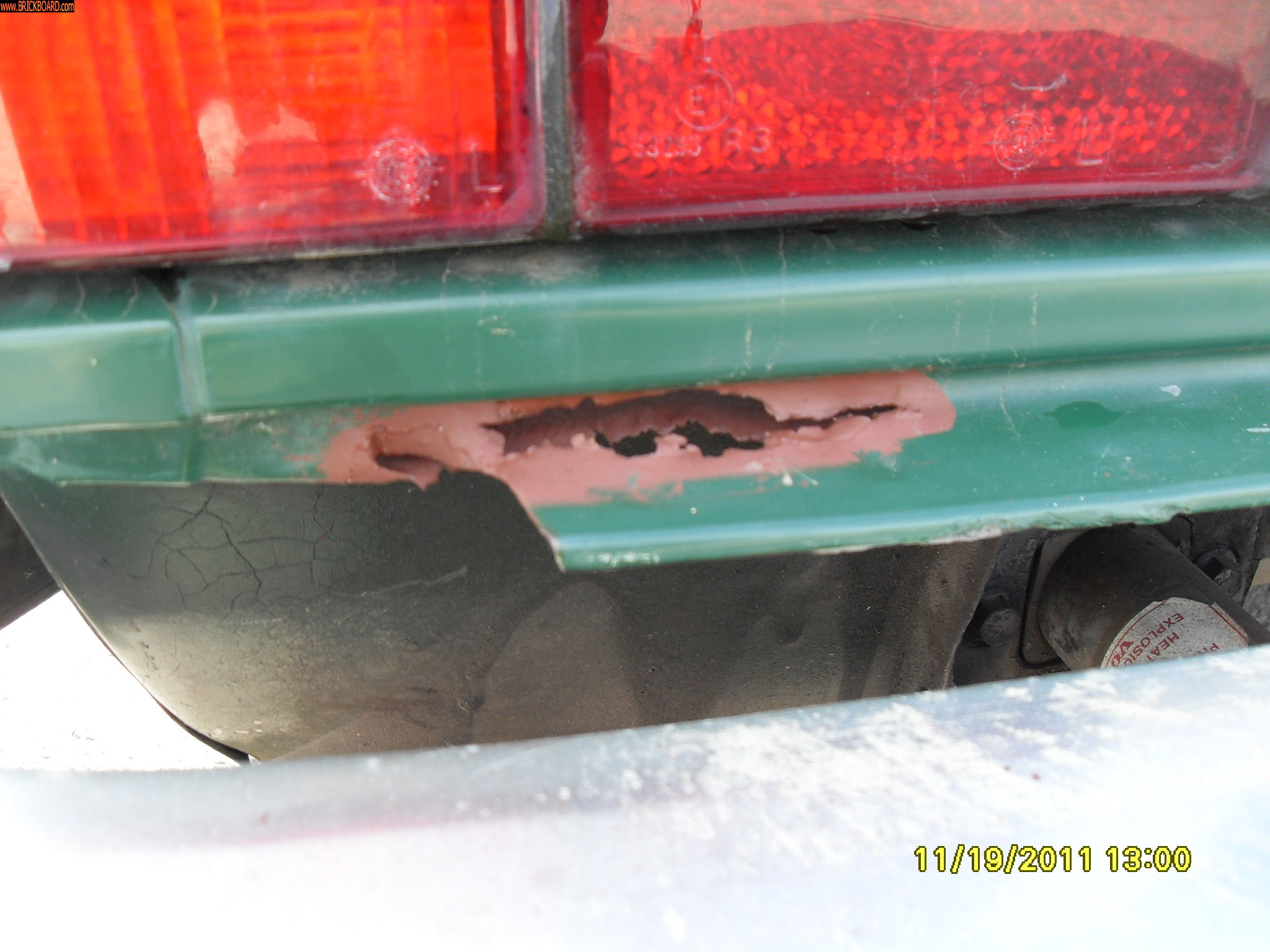

Tail Light Rust

Volvo 200 -- Tail Light Rust
POSTED BY
81242DLB21FCA[SHOW ALL]
DATE
HTML
CITY
San Francisco
STATE
CA
COUNTRY
US
NOTE
This happened because my tail light assembly had a small leak for several years.

Tail Light Rust

Volvo -- Tail Light Rust
POSTED BY
81242DLB21FCA[SHOW ALL]
DATE
HTML
CITY
San Francisco
STATE
CA
COUNTRY
US
NOTE
This happened because my tail light assembly had a small leak for several years.

Oscillation Damper ('94 945T)

Volvo 900 -- Oscillation Damper ('94 945T)
POSTED BY
Greg R[SHOW ALL]
DATE
HTML
CITY
Deerfield
STATE
IL
COUNTRY
US
NOTE
Not sure where the leads coming off of the top mounting bolt (at firewall) are, or where they're supposed to be connected (mine are loose...found them this way when replacing the d-cap and rotor).

what are these parts?

Volvo -- what are these parts?
POSTED BY
DATE
HTML

122 ac installation

Volvo 120-130 -- 122 ac installation
POSTED BY
onstottc[SHOW ALL]
DATE
HTML
CITY
Albany
STATE
OR
COUNTRY
US

Volvo 122 AC Installation

Volvo 120-130 -- Volvo 122 AC Installation
POSTED BY
onstottc[SHOW ALL]
DATE
HTML
CITY
Albany
STATE
OR
COUNTRY
US
NOTE
Sanden Compressor Installed in 122

Red Velvet Cake / Blowing down the intercooler

Volvo 700 -- Red Velvet Cake / Blowing down the intercooler
POSTED BY
Brick Skinner[SHOW ALL]
DATE
HTML
CITY
Houston
STATE
TX
COUNTRY
US
NOTE
Blowing out an intercooler the only way a redneck can. All you need is a leaf blower, duct tape, some AC flush, and rags. Note the pipe between the intercooler and intake is backwards to allow configuration for overboard ejection.

Volvo Locking mechanism

Volvo -- Volvo Locking mechanism
POSTED BY
DATE
HTML
