| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |
| After reassembly there should be electrical continuity between both termnals and the screw circular grounding point( dont forget to clean this area ).This is with the switch as shown ( door open).. |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |
| Dont forget to clean the ground tab in the housing..Reassemble is pretty much the opposite.The plunger must be out about one half inch for the catch to snap back in place. At all times note orientation as you dissasemble and reassemble. |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |
| Clean all surfaces , very light sanding , use dielectric grease on all metal surfaces , even the screw |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

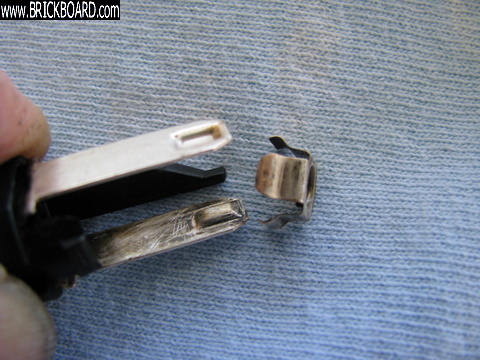

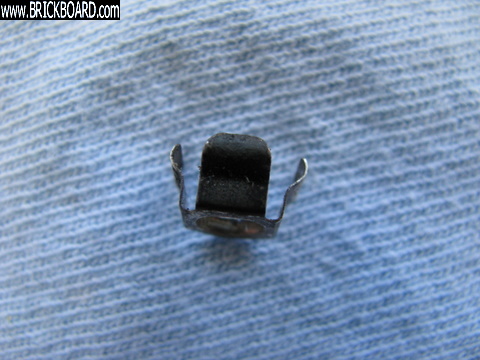

| Remove ground contact from plunger..here it is the dirty |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |
| Here is another view |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

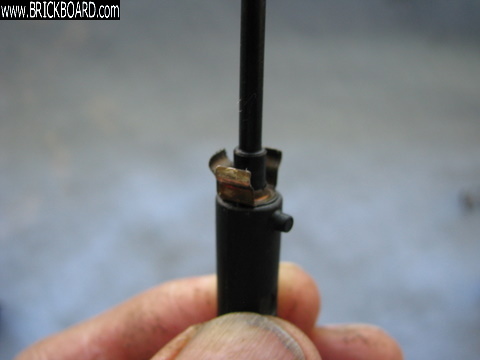

| Note Orientation of small tab on plunger in reation to middle ground contact..almost opposite. Important for reassembly! |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

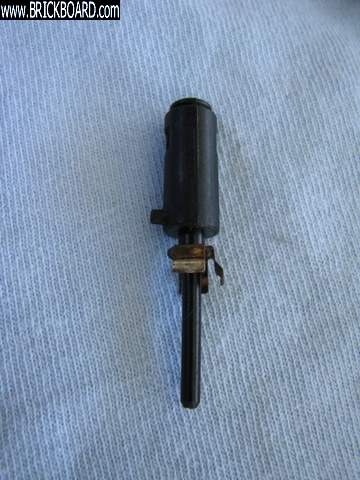

| Plunger with ground contact |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

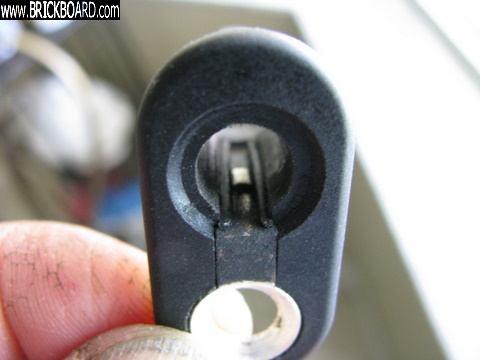

| Note orientation |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

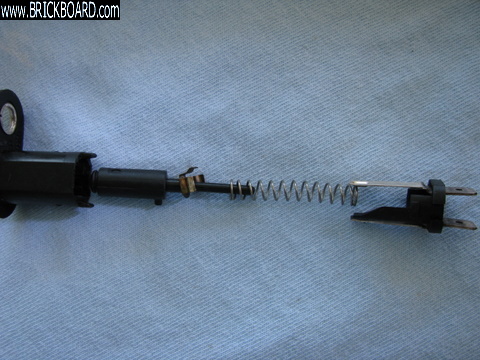

| Note orientation as you continue to dissamble |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

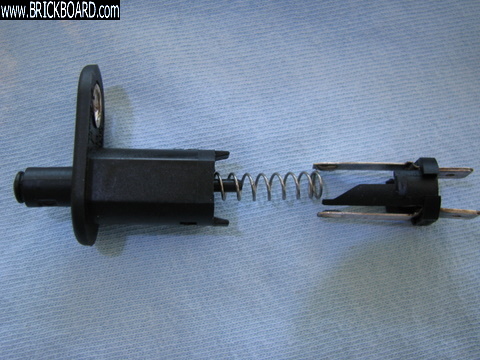

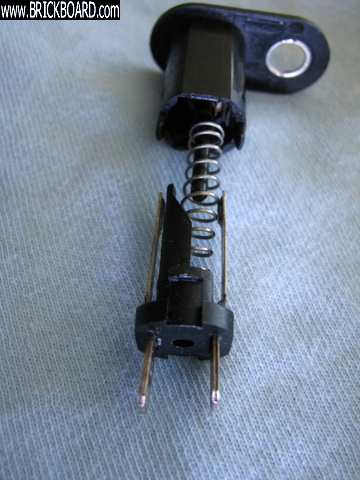

| Once released pull out slowly.Note orientation of assembly. |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

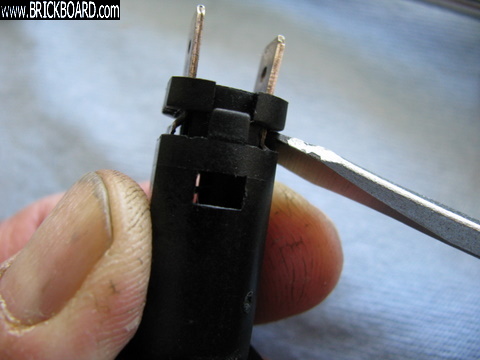

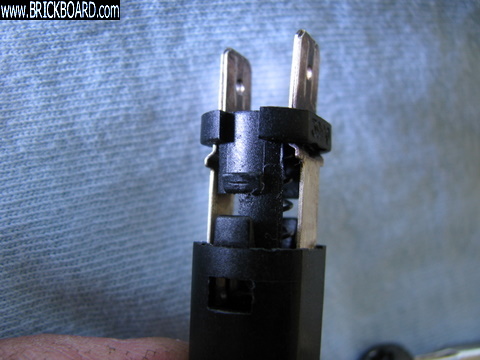

| Insert fine tip flat screw driver as shown and press in and up..do 2 sides to release catch. |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

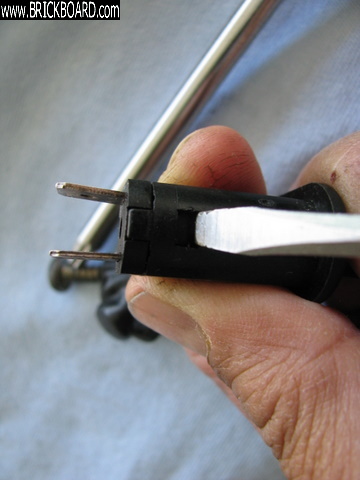

| Once slightly out insert screw driver as shown and pry up |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |

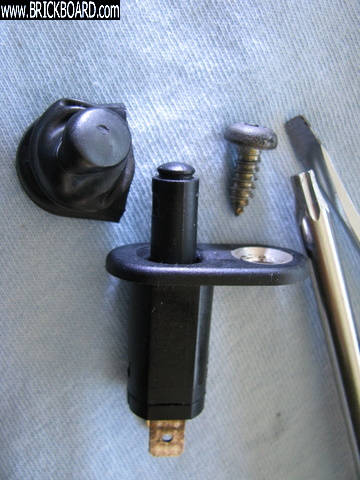

| Tool needed t25 torx,small flat tip screw driver .Note..Rubber cover is torn |
|
|
|
|
|
|
|
| POSTED BY |
| chuffsy[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| Miami |
| STATE |
| FL |
| COUNTRY |
| US |
| NOTE |
| Tool needed t25 torx,small flat tip screw driver .Note..Rubber cover is torn |
|
|
|
|
|
|
|
| POSTED BY |
| 83GLT[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| ny |
| STATE |
| NY |
| NOTE |

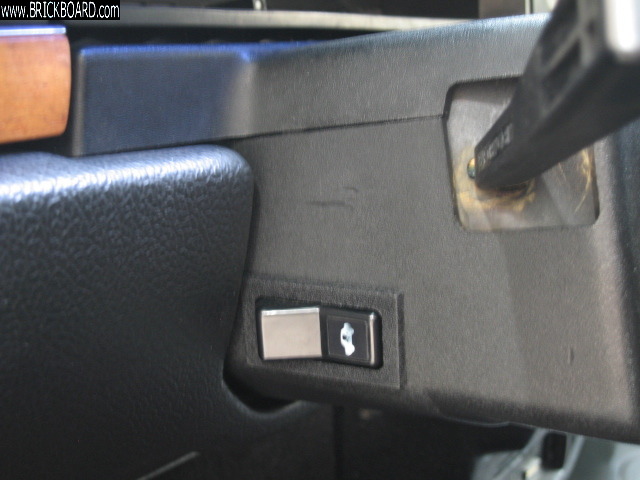

| Here's the interior light switch. |
|
|
|
|
|
|
|
| POSTED BY |
| 83GLT[SHOW ALL] |
| DATE |
|
| HTML |
|
| CITY |
| ny |
| STATE |
| NY |
| NOTE |

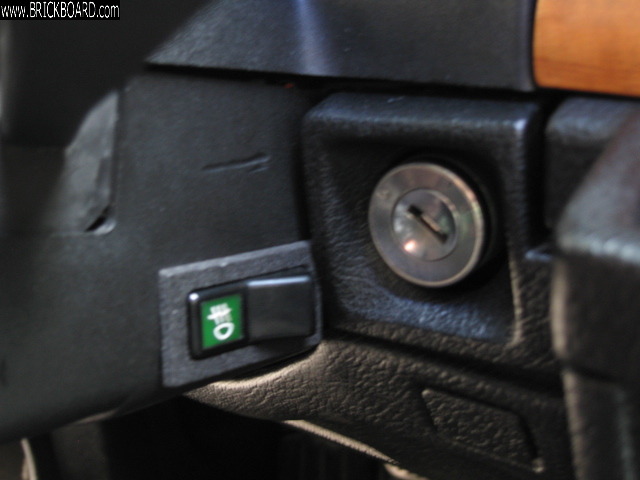

| 245's used as taxis in Europe used this location on the left side of the steering column to place an interior light switch. I used the right side to install the fog light switch as all the center console spots were taken up. I have the interior light switch on the left side of the column. This is an alternative to using the space for the cigarette lighter to add more switches. |
|
|
|
|
